Atlas H95 95 L/min (5.7 m³/hr) 316 Stainless Steel UV Unit 1" NPT (Luminor LBH5-252, Luminor LBH5-253)
Atlas H95 95 L/min (5.7 m³/hr) 316 Stainless Steel UV Unit 1" NPT (Luminor LBH5-252, Luminor LBH5-253)
SKU:ATLAS H95 System
Share

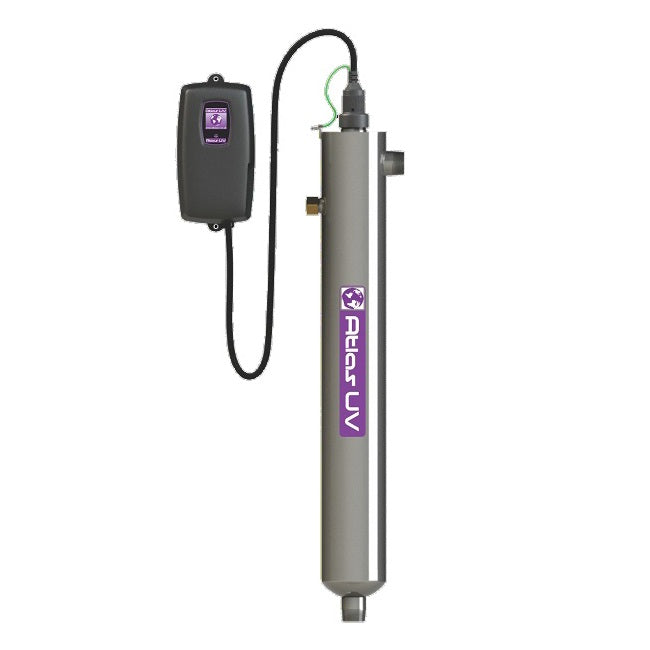

Atlas H95 95 L/min UV Unit with 316 Stainless Steel Chamber
The Atlas H95 UV Unit is designed to provide dependable and efficient UV disinfection for drinking water in medium to large residential and light commercial settings. With a capacity of 95 L/min (5.7 m³/hr), this high-performance system ensures clean and safe water for a range of applications. Built with a durable and polished 316L stainless steel chamber, it delivers long-lasting efficiency and corrosion resistance. The unit incorporates an upgradeable controller with an intuitive color LCD display and an Infinite Expandability Port (IEP) for seamless integration of optional modules to meet evolving water treatment needs.
Why Choose the Atlas H95 UV Unit?
-
High-Capacity Water Treatment
Handles large water flow rates with consistent UV disinfection that ensures safe drinking water. -
316L Stainless Steel UV Chamber
Engineered for durability and optimal UV performance, the chamber ensures reliable operation under demanding conditions. -
Upgradeable Design
The Infinite Expandability Port (IEP) supports add-ons like a UV sensor, solenoid module, or flow meter to meet your future requirements. -
User-Friendly LCD Interface
Provides clear feedback, including lamp life tracking, system performance alerts, and QR code-based service access. -
Simple Plug-and-Play Installation
Compact design integrates easily into most systems for quick and efficient setup.
Optional Expansion Modules
The IEP feature allows easy customization of the Atlas H95 with versatile expansion modules:
-
UV Sensor Module
Monitors UV intensity (254nm wavelength) and communicates performance data directly to the controller. -
Solenoid Module
Protects your system by stopping water flow in case of low UV output or lamp failure. -
Water Quality Monitor
Offers remote monitoring of major and minor alarms, displaying status via LED indicators from up to 46m (150ft) away. -
Ultrasonic Flow Meter
Optimizes energy use by adjusting power output during periods of low or no flow, reducing costs and preventing fouling. -
TRV (Temperature Relief Valve)
Prevents overheating by releasing water during extended periods of inactivity or high-temperature conditions. -
Cooling Fan
Maintains optimal operating temperatures using air circulation, without wasting treated water. -
4-20mA Output Module
Enables connection to loggers or remote devices for advanced performance monitoring. -
Remote Alarm Module
Notifies users offsite of critical conditions or system alerts via dry contacts.
Key Features
Proven UV Disinfection Technology
- Distributes a dependable UV dosage of 30 mJ/cm², neutralizing bacteria, viruses, and microorganisms.
- Fully WRAS-approved for water safety compliance.
Superior Build Quality
- Polished 316L stainless steel chamber is corrosion-resistant and efficient.
- Built for heavy-duty, long-term performance.
Advanced LCD Controller
- Tracks lamp life with alerts and provides system warnings for proactive maintenance.
- QR code functionality provides instant access to spare parts and support.
Minimal Maintenance Design
- Tool-free twist-and-turn lamp replacement means servicing is quick and easy.
Specifications at a Glance
| Feature | Details |
|---|---|
| Flow Rate | 95 L/min (5.7 m³/hr) |
| Port Size | 1" NPT |
| Lamp Power | 67W |
| Power Supply | 72W (90-265V, 50-60Hz) |
| UV Lamp Life | 10,000 hours |
| Chamber Material | Polished 316L Stainless Steel |
| Operating Pressure | Up to 10.3 bar (150 psi) |
| Operating Temperature | 2-40°C (36-104°F) |
| Unit Dimensions | 8.9 x 73 cm |
| Controller Dimensions | 217 x 107 x 90 mm |
Warranty
The Atlas H95 UV Unit comes with industry-leading warranties for peace of mind.
- Reactors - 10-year limited warranty.
- Electronics - 3-year limited warranty.
- UV Lamps and Quartz Sleeves - 1-year limited warranty.
Benefits
-
Flexible and Future-Ready
Tailor your system to your unique water treatment needs with optional modules. -
Sturdy and Reliable Design
High-grade 316L stainless steel guarantees durability and long-lasting performance. -
Simple Maintenance and Operation
Intuitive displays and straightforward installation reduce the time and effort involved in upkeep.
Applications
Ideal for large residential setups, agricultural water treatment, or light commercial applications, the Atlas H95 UV Unit reliably handles high-capacity water disinfection with the option to expand as your needs grow.
Invest in Superior Water Treatment Today
With its premium-grade 316L stainless steel chamber, real-time LCD interface, and adaptable design, the Atlas H95 UV Unit is the ultimate choice for powerful, efficient, and future-focused water disinfection. Deliver clean, safe water to your home or business with the Atlas H95 and enjoy peace of mind today!
