Fleck 9500 SXT Duplex Meter Controlled Softener Kit 1.5" (5.6 - 6.8 m³/hr)
Fleck 9500 SXT Duplex Meter Controlled Softener Kit 1.5" (5.6 - 6.8 m³/hr)
SKU:FLD95SXT120
Share
Product Description
Product Description

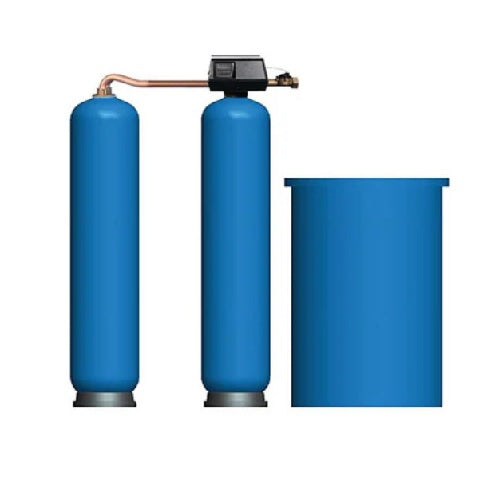

Fleck 9500 Twin Tank Water Softener Kit – Built Around the Fleck 9500 Valve Head
Fully Equipped, Commercial-Grade Kit with High-Capacity Flow – Supplied by Wrekin Water
This complete water softener kit is built around the robust and reliable Fleck 9500 twin tank valve, offering efficient, high-capacity water softening for commercial and light industrial applications. Designed to deliver continuous soft water, this system automatically regenerates once capacity is reached—ensuring minimal downtime and optimal performance.
What’s Included:
• Fleck 9500 Twin Tank Valve Head
• Twin Vessels
• Quality Food-Grade Softener Resin
• Brine Tank
• Yokes and all internal parts
• 1.5" BSPF Inlet & Outlet Connections
• 3/4" BSPF Drain Connection
Key Features & Benefits
⚙️ Fleck 9500 Valve Technology
Trusted 5-cycle, fully adjustable twin-tank valve for reliable and efficient regeneration.
💧 Continuous Soft Water Supply
Twin alternating tanks allow one vessel to regenerate while the other remains in service—no interruption to water flow.
🔌 Low Power Operation
Operates on 230V–24V (50 Hz) transformer with a modest 55W power rating.
🛠️ Partially Assembled for Shipping
Kit is pre-configured and partially assembled at our workshop. Some assembly will be required on-site. Lead time applies – contact us before ordering.
📉 Recommended Filtration
To protect system longevity, we recommend installing a 20-micron pre-filter cartridge on the inlet side.
⏲️ Smart Regeneration Timing
-
Immediate regeneration when softening capacity is reached
-
Minimum 8 hours between regenerations
-
Maximum interval between regenerations: 4 days (to prevent bacterial growth)
Technical Specifications:
| Feature | Specification |
|---|---|
| Inlet/Outlet | 1.5" BSPF |
| Drain Connection | 3/4" BSPF (open drain required) |
| Power Supply | 230–24V / 50Hz |
| Power Consumption | 55 watts |
| Min Inlet Pressure | 2 bar |
| Max Inlet Pressure | 7 bar |
| Max Water Temperature | 43°C |
| Vacuum | Not permitted |
| Pressure Loss | Approx. 1 bar |
Ideal For:
✔ Commercial properties
✔ Light industrial use
✔ High-demand water softening applications
✔ Systems requiring uninterrupted soft water
Why Choose Wrekin Water?
At Wrekin Water, every softener kit is pre-programmed and partially assembled by our in-house team, ensuring compatibility, performance, and ease of setup. Our support doesn’t stop at supply—we’re here to help you get the most from your investment.
📦 Contact us today to confirm lead time and get your Fleck 9500 twin tank system built, configured, and ready for installation. Only from Wrekin Water.
