PENTAIR NO10 Blue Housing 3/4" VIH W/PR 150180 (NO10BL3/4BTVIHW/PR)
PENTAIR NO10 Blue Housing 3/4" VIH W/PR 150180 (NO10BL3/4BTVIHW/PR)
SKU:100240-NO10-VIH-BLUE-3/4
Share
Product Description
Product Description
Discontinued Line - Please check stock availability before ordering

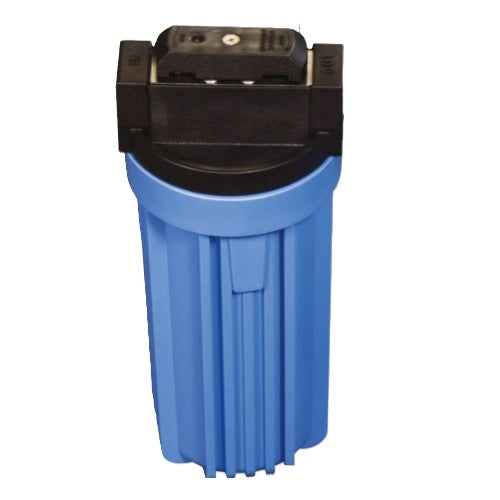

PENTAIR NO10 Blue Housing 3/4" VIH W/PR – Part No. 150180 (NO10BL3/4BTVIHW/PR)
Durable 10" Filter Housing with Pressure Relief – Supplied by Wrekin Water
The Pentair NO10 Blue Housing 3/4" VIH W/PR is a high-quality 10" standard filter housing, engineered for performance and reliability in a wide range of water filtration applications. Made from rugged reinforced polypropylene and rated for pressures up to 125 psi, this housing is suitable for both residential and light commercial systems.
Fitted with ¾" NPT inlet/outlet ports and a convenient pressure relief button on the cap, this unit allows for safe and easy cartridge replacement. Compatible with all standard 2½" to 2⅞" diameter filter cartridges.
🔧 Key Features & Benefits:
-
10" Standard Filter Housing
-
¾" BSP/NPT female inlet & outlet ports
-
Reinforced polypropylene cap with pressure relief/bleed valve
-
Opaque blue sump for UV resistance and chemical compatibility
-
Top-seated Buna-N O-ring for leak-free sealing
-
NSF/ANSI Standard 42 Certified for structural integrity and material safety
✅ Specifications:
| Feature | Detail |
|---|---|
| Part Number | 150180 (NO10BL3/4BTVIHW/PR) |
| Housing Material | Reinforced Polypropylene (Blue) |
| Cap Material | Reinforced Polypropylene |
| O-Ring Material | Buna-N |
| Port Size | ¾" NPT/BSP Female |
| Pressure Relief | Yes – stainless steel & EPDM |
| Maximum Pressure | 125 psi (8.6 bar) |
| Temperature Range | 4.4°C to 51.7°C |
| Compatible Cartridge Size | 10" length, 2.5"–2.87" diameter |
🏠 Ideal For:
✔ Whole house sediment or carbon filtration
✔ Pre-filtration for RO or UV systems
✔ Light commercial or industrial water treatment setups
✔ Borehole and well water filtration systems
Why Choose Wrekin Water?
As water treatment specialists, Wrekin Water supplies only trusted, certified components like the Pentair NO10 Blue Housing 3/4" VIH W/PR. With expert advice and fast UK delivery, we help ensure your water filtration system runs smoothly and efficiently.
📦 Order now and upgrade your filtration setup with this dependable 10" housing from Pentair—available at Wrekin Water.
