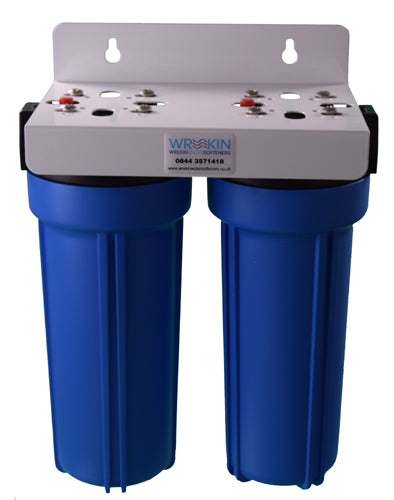

HD10-TWIN-SET 10in Heavy Duty Filter Housing Set, Pressure Release, 3/4in Ports, Bracket and Spanner
HD10-TWIN-SET 10in Heavy Duty Filter Housing Set, Pressure Release, 3/4in Ports, Bracket and Spanner
SKU:HD10-TWIN + Spanner
Share
Product Description
Product Description
Wrekin Water HD10-TWIN-SET – 10" Heavy-Duty Filter Housing Set
Dual-Stage Water Filtration System with Pressure Release, Bracket & Spanner
The Wrekin Water HD10-TWIN-SET is a 10-inch twin heavy-duty filter housing system designed to deliver reliable, high-performance water filtration for domestic and light commercial use.
With 3/4" BSP ports, a pressure-release valve, and a robust twin-housing assembly, this system is ideal for whole-house filtration, UV pre-treatment, or general water purification applications up to 25 L/min.
Built to Wrekin Water’s standards of quality and economy, the HD10-TWIN-SET provides an affordable yet durable filtration solution — complete with mounting bracket and spanner for easy installation and maintenance.
Key Benefits
✅ Dual-Stage Filtration – Configure for sediment + carbon, or other cartridge combinations for cleaner, safer water.
✅ Heavy-Duty Build – Strong polypropylene housings ensure long life and reliable pressure performance.
✅ Pressure-Release Valves – Allow safe and easy cartridge changes.
✅ Universal Cartridge Fit – Accepts standard 10" × 2.5" (2.5" × 9 ⅞") filter cartridges.

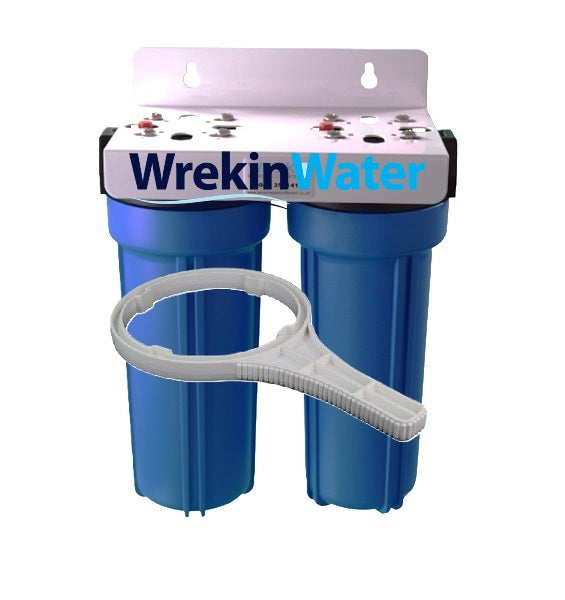

✅ Complete Installation Kit – Supplied fully assembled with wall bracket and housing spanner.
✅ Ideal Flow Capacity – Suitable for cold-water installations up to 25 LPM.
Typical Applications
-
Whole-house water filtration systems
-
Pre-filtration for UV disinfection units
-
Sediment and chlorine removal for mains or private supplies
-
Protection for domestic appliances, washing machines, and plumbing
Recommended Filter Combinations
-
Stage 1: Sediment Cartridge (5 µm or 20 µm) – removes sand, rust, and suspended solids.
-
Stage 2: Carbon Block Cartridge – reduces chlorine, taste, and odour for cleaner water.
💡 Other cartridges such as iron, nitrate, or scale-inhibitor filters can also be used depending on your water quality.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Wrekin HD10-TWIN-SET |
| Filter Size | 10" × 2.5" (2.5" × 9 ⅞") |
| Number of Housings | 2 (Twin) |
| Ports | 3/4" BSP Female |
| Max Flow Rate | Up to 25 L/min |
| Max Pressure | 8 bar |
| Temperature Range | 4 – 38 °C |
| Material | Reinforced Polypropylene |
| Pressure Release | Yes |
| Mounting | Wall-mount bracket (included) |
| Dimensions (assembled) | Width 280 mm × Depth 160 mm × Height 365 mm (including bracket) |
