HF10BB-TWIN - Wrekin High Flow, Large Diameter Housing Set with 1" BSPF Ports

Wrekin Water are proud of the quality and performance of our Large Diameter Housing Range. Comes with 1" BSP ports enables easy connection using a variety of standard fittings available from any plumbing supplies.

This high flow unit can have a flow rate up to 76lpm depending on the choice of filter chosen. Ideal for Whole House, UV Pre-Filter and many Large House and commercial filter requirements.

• HF10BB Comes with
  • Housing

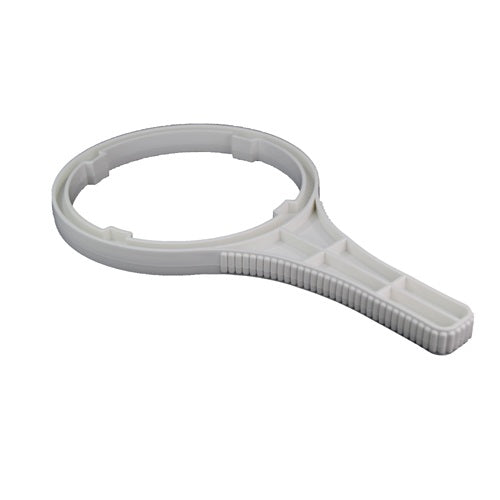

  • Spanner
  • Heavy Duty Bracket
  • Product is supplied ready assembled
  • (Wall fixings are not included)
• Product Specification
  • SPECIFICATIONS
  • Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
  • Min pressure:- Approx 2 Bar (28psi)
  • Max pressure:- 6.8 Bar
  • Max water temp:- 20°C Water, 30°C ambient
  • Height:- 350 mm(470mm With Bracket)
  • Width 390mm
  • Depth:- 200 mm
  • Inlet / Outlet:- 1'' BSP female
  • Housing material:- Polypropylene
  • Colour:- Blue
  • Filters cartridges:- 10 inch nominal x 4.5in Diameter. Referred to as BB - Big Blue

    * Flow rate through housing
    The maximum flow rate shows the flow through an empty housing. The flow will decrease
    according to the type of cartridge installed and the water supply pressure.
