Wrekin Water High Flow BB - 10in Housing with 5-Micron Sediment Filter
The Wrekin Water High Flow BB - 10in Housing is a robust and efficient water filtration solution for domestic and commercial applications. Designed for high flow rates and equipped with a 5-micron large diameter sediment filter, this system ensures cleaner, safer water while maintaining a steady flow.
Key Features of the Wrekin Water High Flow BB
1. High Flow Performance
- Maximum Flow Rate: Approx 76 litres per minute at 3 bar (42 psi) with an empty housing.
- Compatible with 10-inch nominal filter cartridges, ensuring versatile filtration options.
2. Durable and Reliable Construction
- Made from high-quality polypropylene, the housing is both durable and lightweight.
- Designed to handle pressures between 2 bar (28 psi) and 6.8 bar (100 psi).
3. Effective Sediment Filtration
- Includes a 5-micron large diameter sediment filter to remove dirt, rust, and other particulates from your water supply.
4. Built-in Pressure Relief Valve
- Ensures safe operation and easier filter changes by releasing excess pressure.
5. Convenient Installation and Maintenance
- Includes a metal fixing bracket and spanner for easy installation.
- Compact dimensions make it suitable for small spaces without compromising performance.
Technical Specifications
| Specification | Details |
|---|---|
| Max Flow Rate (Empty) | Approx 76 litres/min at 3 bar |
| Minimum Pressure | Approx 2 bar (28 psi) |
| Maximum Pressure | 6.8 bar (100 psi) |
| Max Water Temperature | 20°C |
| Max Ambient Temperature | 30°C |
| Housing Material | Polypropylene |
| Colour | Blue |
| Inlet/Outlet | 1'' BSP female |
| Filter Cartridge | 10-inch nominal |
Dimensions
| Dimension | Size |
|---|---|
| Height (Housing Only) | 350 mm |
| Height (With Bracket) | 470 mm |
| Width | 200 mm |
| Depth | 200 mm |

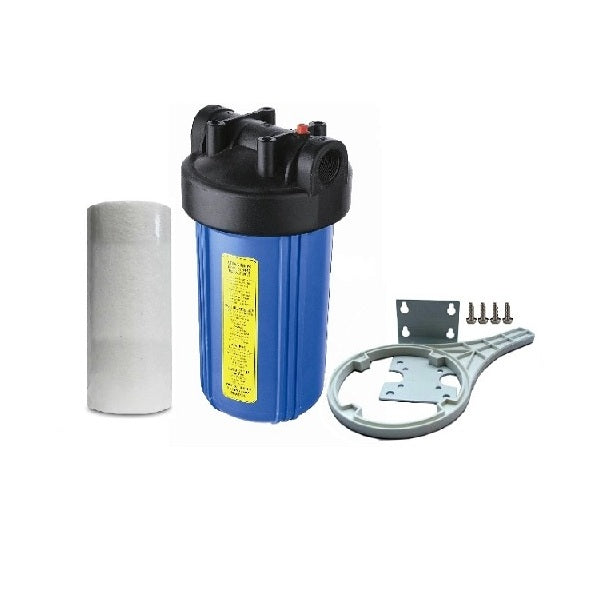

What’s Included in the Kit?
- Housing Unit: Wrekin Water High Flow BB - 10in
- Filter Cartridge: 5-micron large diameter sediment filter
- Spanner: For easy filter changes
- Metal Fixing Bracket: For secure installation
- Built-in Pressure Relief Valve: For safe and convenient maintenance
Applications
The Wrekin Water High Flow BB is perfect for a wide range of applications, including:
- Domestic Water Systems: For clean and safe drinking water.
- Commercial Applications: Handles high flow demands with ease.
- Pre-Filtration: Ideal for protecting appliances such as water heaters and washing machines from sediment build-up.
FAQs for Wrekin Water High Flow BB - 10in Housing
Q: What type of filter cartridge can I use?
A: The housing is compatible with 10-inch nominal filter cartridges, making it highly versatile for different filtration needs.
Q: Does the flow rate decrease with a filter installed?
A: Yes, the flow rate will depend on the type of filter cartridge and the water supply pressure.
Q: Is this system easy to install?
A: Absolutely! The kit includes a spanner and metal fixing bracket for a quick and secure installation.
Why Choose the Wrekin Water High Flow BB?
- High Flow Rate: Supports up to 76 l/min at 3 bar for large water demands.
- Durable Construction: Made from robust polypropylene for long-lasting use.
- Compact Design: Fits into tight spaces without sacrificing performance.
- Easy Maintenance: Built-in pressure relief valve and spanner for effortless filter changes.
- Versatile Application: Suitable for both domestic and commercial water filtration needs.
