Wrekin Water HF10BB/CB10BB High Flow Whole House Filter
The Wrekin Water HF10BB/CB10BB High Flow Whole House Filter is the ultimate solution for clean, filtered water throughout your home. Featuring Big Blue (BB) 10-inch x 4.5-inch filter cartridges, this system ensures a high flow rate and effective filtration for all your household water needs.
Key Features of the Wrekin Water HF10BB/CB10BB
1. High Flow Rate Performance
- Maximum Flow Rate: Approx 76 litres per minute at 3 bar (42 psi) with an empty housing.
- The Big Blue (BB) design allows for high water flow while accommodating large filter cartridges.
2. Durable Construction
- Built with polypropylene housing, ensuring durability and resistance to corrosion.
- Handles a pressure range of 2 bar (28 psi) to 6.8 bar (100 psi), making it suitable for various water systems.
3. Effective Filtration
- Compatible with 10-inch nominal x 4.5-inch diameter carbon block filter cartridges, providing high-quality filtration for sediment, chlorine, and odour.
4. Convenient Maintenance
- Equipped with a built-in pressure relief valve for safer and easier filter changes.
- Includes a spanner and metal fixing bracket for easy installation and maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Flow Rate | Approx 76 litres/min at 3 bar |
| Minimum Pressure | Approx 2 bar (28 psi) |
| Maximum Pressure | 6.8 bar (100 psi) |
| Maximum Water Temperature | 20°C |
| Maximum Ambient Temperature | 30°C |
| Inlet/Outlet | 1'' BSP female |
| Filter Cartridge Size | 10-inch nominal x 4.5-inch diameter |
| Housing Material | Polypropylene |
| Housing Colour | Blue |
Dimensions
| Dimension | Size |
|---|---|
| Height (Housing Only) | 350 mm |
| Height (With Bracket) | 470 mm |
| Width | 200 mm |
| Depth | 200 mm |

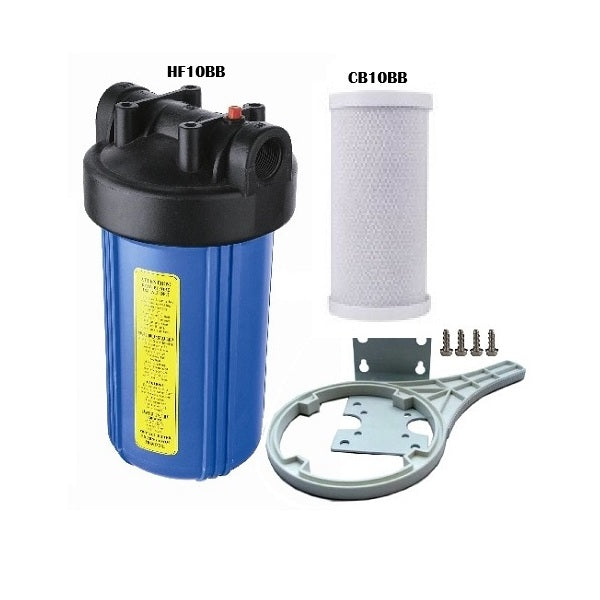

What’s Included in the Kit?
- Housing Unit: HF10BB Big Blue 10" High Flow Housing
- Spanner: For quick and easy filter changes
- Metal Fixing Bracket: For secure installation
- Built-in Pressure Relief Valve: Ensures safety and convenience during maintenance
Applications
The Wrekin Water HF10BB/CB10BB is ideal for a variety of applications, including:
- Whole House Water Filtration: Ensures clean water for all household uses.
- Pre-Filtration: Protects appliances like water heaters, washing machines, and dishwashers from sediment and chlorine.
- Commercial Applications: Supports high water flow demands in commercial setups.
FAQs for the Wrekin Water HF10BB/CB10BB
Q: What type of filter cartridges can I use?
A: The housing is compatible with 10-inch nominal x 4.5-inch diameter Big Blue (BB) filter cartridges, including carbon block filters for chlorine removal or sediment filters for coarse debris.
Q: How often should I change the filter?
A: Filter replacement frequency depends on water quality and usage, typically every 6-12 months for carbon block filters.
Q: Is this system easy to install?
A: Yes! The HF10BB/CB10BB includes all necessary components, such as a spanner and metal fixing bracket, for quick DIY installation.
Why Choose the Wrekin Water HF10BB/CB10BB?
- High Flow Rate: Handles up to 76 l/min, perfect for whole-house filtration.
- Durable and Reliable: Polypropylene housing and robust construction ensure long-term performance.
- Cost-Effective: Protects appliances and plumbing, reducing maintenance and replacement costs.
- DIY Friendly: Simple installation and maintenance with included tools.
Contact Us for More Information
Upgrade your water filtration system with the Wrekin Water HF10BB/CB10BB High Flow Whole House Filter. Contact us today for expert advice or to place your order
