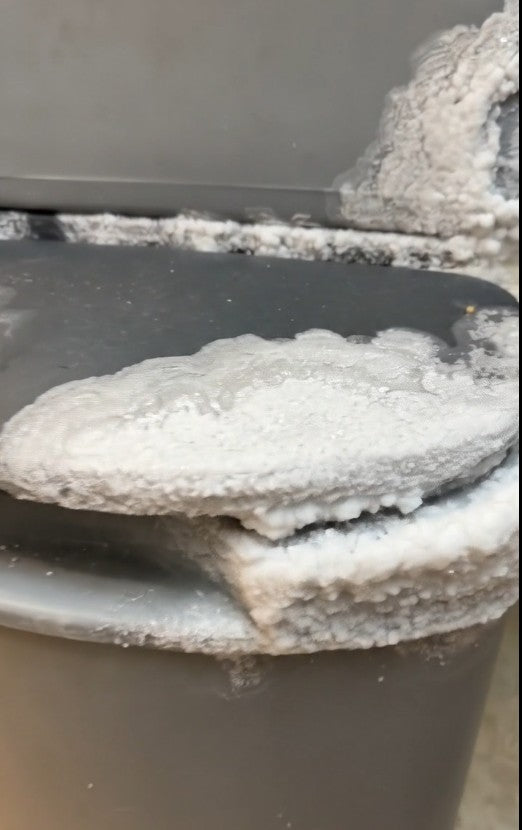

What is Salt Creep?
Salt creep is the physical process where dissolved salts in water crystallize as the water evaporates, typically at the edge of a water line or a small leak. These crystals then act like a "wick," drawing more salty water up through the structure of the salt itself, allowing the crust to "creep" and spread across surfaces.
Why is it a Problem?
In water treatment systems, especially those involving water softeners or Reverse Osmosis (RO) units, salt creep can lead to:
-
Corrosion: Salt is highly corrosive to metal fittings and electronics.
- Seal Failure: Salt crystals are abrasive and can tear through rubber O-rings and gaskets if left to build up.
- Contamination Risks: Under the Water Supply (Water Fittings) Regulations 1999, any fitting that is damaged or worn must not cause the contamination of wholesome water. Excessive salt build up can compromise the integrity of these fittings.
How to Keep on Top of It
-
Routine Inspections: Regularly check the brine tank, valves, and discharge pipes for white, crusty deposits.
-
Maintain Watertight Seals: The regulations state every water fitting must be watertight. If you see salt creep at a joint, it often indicates a microscopic leak that needs immediate repair.
- Cleaning: Use warm, fresh water to dissolve and wipe away salt build up as soon as it appears. Avoid using abrasive chemicals that could damage the fitting materials.
- Professional Maintenance: For complex systems, ensure work is carried out by an approved contractor who can certify that the fittings remain in a "workmanlike manner" and comply with safety standards.
The Anatomy of Salt Creep
Salt creep is more than just a mess; it is a specialized form of evaporative crystallization combined with capillary action. It typically occurs in systems where high-salinity water, such as the brine in a water softener or the reject water from a Reverse Osmosis (RO) unit, makes contact with the air.
1. The Trigger: Nucleation
The process begins with a microscopic leak, a "sweating" fitting, or even a splash on the rim of a brine tank. As the water in that droplet evaporates, the concentration of dissolved salt increases until it reaches a state of supersaturation. At this point, salt crystals begin to form (nucleate) on the surface.
2. The Engine: Capillary Action
Unlike a simple spill, salt creep is "alive" in a sense. The structure of the initial salt crystals is porous. These pores act as tiny straws—capillaries—that pull fresh brine from the source up through the existing crust.
- Evaporation happens at the outer edge of the crust.
- New crystals form at that edge, extending the "creep" further.
- This cycle continues as long as there is a supply of salty water and dry air.
3. Ideal Conditions for Creep
Salt creep thrives in specific environments often found in utility rooms:
-
Low Humidity: Dry air accelerates evaporation, which speeds up the crystallization process.
- Temperature Fluctuations: Under the Water Supply (Water Fittings) Regulations 1999, systems must resist damage from temperature fluctuations. Changes in temperature can affect the solubility of salt, causing it to precipitate out of the water more rapidly.
- Surface Tension: Rough surfaces or fittings with "workmanlike" defects (like burrs or poor threads) provide more surface area for crystals to take hold.
Regulatory and Technical Risks
While it looks like harmless "snow," salt creep poses significant risks to your infrastructure:
Material Degradation and Permeation
Salt creep is highly corrosive to metal. Furthermore, plastic fittings can be at risk of permeation or becoming brittle when exposed to constant chemical stress. Regulations strictly forbid using materials that are likely to cause the contamination of water due to corrosion or chemical processes.
Mechanical Failure
-
Valve Seizure: If salt creeps into the moving parts of a control valve, it can seize the motor or gears.
- O-ring Compromise: Crystals can grow behind seals, "lifting" them and turning a microscopic seep into a major leak.
Backflow and Waste
Excessive salt buildup can block overflow pipes or warning pipes. For instance, a storage cistern must have a functioning overflow to prevent waste and alert the owner to a failure. If salt creep blocks this pipe, a system failure could result in significant property damage or the contamination of the mains supply.
