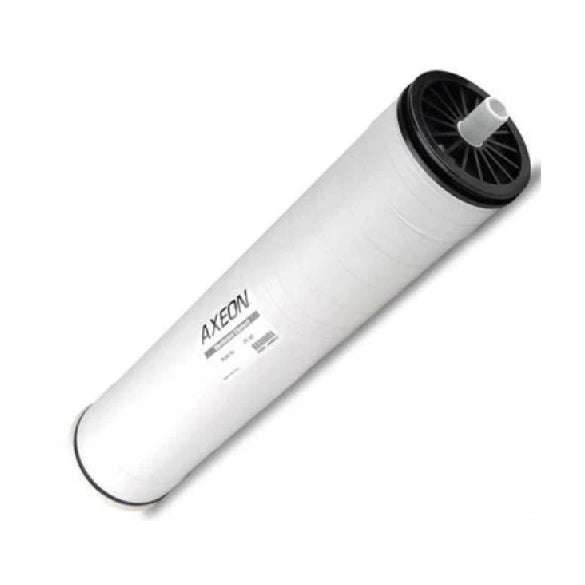

AXEON HF5-4021 Ultra Low Energy Reverse Osmosis Membrane
AXEON HF5-4021 Ultra Low Energy Reverse Osmosis Membrane
SKU:HF5-4021
Share
Ultra-Low Energy Membrane for High-Capacity Water Purification
The AXEON HF5-4021 Reverse Osmosis Membrane is engineered to deliver exceptional performance with the industry’s lowest operating pressure of just 80 psi. Designed for efficiency, it utilises AXEON’s proprietary HF5 Technology™ to ensure maximum water production and energy savings, making it ideal for high-capacity systems.
Key Features of the AXEON HF5-4021
- Lowest Operating Pressure: Reduces energy consumption with a low pressure of 80 psi (5.5 bar).
- High Flow Rate: Produces up to 1,000 gallons per day (3,780 litres/day) of purified water.
- Excellent Salt Rejection: Provides a nominal rejection rate of 98.5% for superior water quality.
- Durable Construction: Tape-wound exterior offers enhanced protection and longevity.
- Rigorous Testing: Each membrane undergoes 100% vacuum integrity testing, with wet-tested options available.
Performance Specifications
| Parameter | Specification |
|---|---|
| Applied Pressure | 80 psi (5.5 bar) |
| Permeate Flow Rate | 1,000 gpd (3,780 lpd) |
| Nominal Salt Rejection | 98.5% |
| Membrane Type | Polyamide Thin-Film Composite |
| Maximum Operating Pressure | 400 psi (27.58 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| pH Range (Continuous) | 2 – 11 |
| pH Range (Short-Term Cleaning) | 1 – 13 |
Why Choose the AXEON HF5-4021?
- Energy Efficiency: Operates at ultra-low pressure, reducing operational costs and environmental impact.
- High Output: Ideal for systems requiring a high daily water yield.
- Optimised for Cold Water: Designed to maintain efficiency in colder water temperatures.
- Long Shelf Life: Shipped dry for easy storage and handling.
- Reliable Performance: Rigorously tested for quality and consistency in operation.
Applications
The AXEON HF5-4021 membrane is perfect for:
- Industrial Systems: Supports large-scale water treatment needs in manufacturing and processing industries.
- Commercial Water Treatment: Ideal for hotels, restaurants, and other high-demand environments.
- Cold Water Applications: Designed for operations in colder climates or where water temperatures are lower.
Maintenance Recommendations
- Pre-Treatment: Remove residual chlorine from feed water to prevent oxidative damage to the membrane.
- Storage: Keep wet-tested membranes sealed to maintain integrity and performance.
- Initial Use: Discard permeate water for the first 24 hours of operation to ensure optimal system cleanliness.
Invest in High Efficiency with the AXEON HF5-4021
The AXEON HF5-4021 Reverse Osmosis Membrane offers ultra-low energy operation, high water output, and exceptional salt rejection. Choose this membrane for a reliable and efficient solution to your water purification needs.
