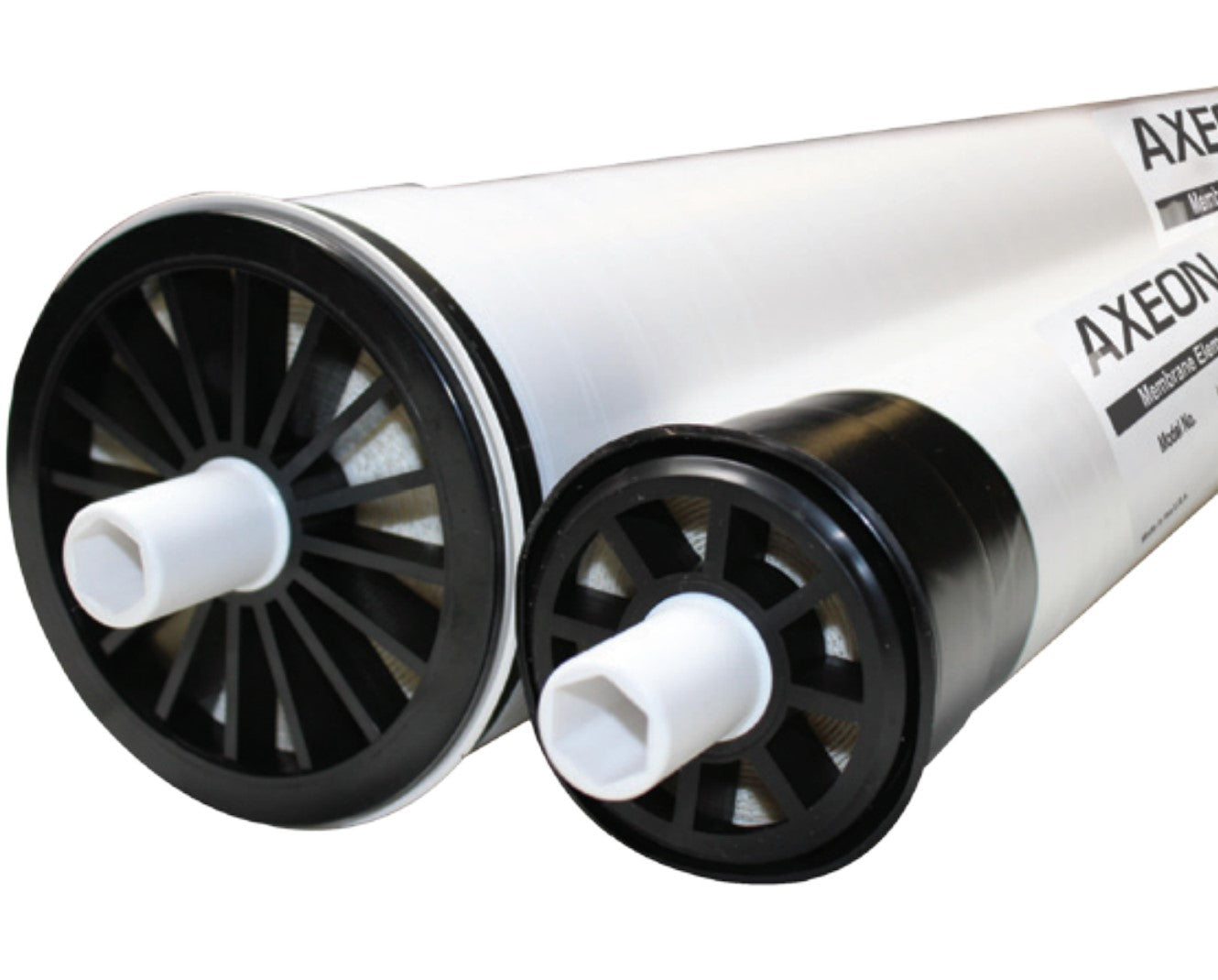

AXEON HF5-4014 Ultra Low Energy Reverse Osmosis Membrane
AXEON HF5-4014 Ultra Low Energy Reverse Osmosis Membrane
SKU:HF5-4014
Share
Product Description
Product Description
Ultra-Low Energy Reverse Osmosis Membrane for Efficient Water Purification
The AXEON HF5-4014 Reverse Osmosis Membrane is a cutting-edge solution designed to meet the demands of modern water purification systems. Featuring AXEON's proprietary HF5 Technology™, this ultra-low energy membrane offers maximum efficiency, delivering exceptional performance even in cold water conditions.
Key Features of the AXEON HF5-4014
- Lowest Operating Pressure: Functions at just 80 psi (5.5 bar), reducing energy consumption significantly.
- High Flow Capacity: Produces up to 600 gallons per day (2,268 litres/day) of purified water.
- Excellent Salt Rejection: Nominal rejection rate of 98.5% for high-quality water output.
- Durable and Reliable: Constructed with a protective tape-wound exterior for enhanced durability.
- Quality Assurance: Every membrane undergoes 100% vacuum integrity testing, with wet testing available.
Performance Specifications
| Parameter | Specification |
|---|---|
| Applied Pressure | 80 psi (5.5 bar) |
| Permeate Flow Rate | 600 gpd (2,268 lpd) |
| Nominal Salt Rejection | 98.5% |
| Membrane Type | Polyamide Thin-Film Composite |
| Maximum Operating Pressure | 400 psi (27.58 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| pH Range (Continuous) | 2 – 11 |
| pH Range (Short-Term Cleaning) | 1 – 13 |
Why Choose the AXEON HF5-4014?
- Energy Savings: Industry-leading low operating pressure reduces energy costs.
- Optimised for Cold Water: Designed to maintain performance in colder temperatures, ideal for seasonal or regional applications.
- Long Shelf Life: Shipped dry for indefinite storage and easy handling.
- Proven Quality: Rigorously tested to ensure consistent and reliable operation.
- Customisation Available: Optional wet-tested membranes tailored to specific requirements.
Applications
The AXEON HF5-4014 membrane is suitable for:
- Industrial Water Systems: A reliable choice for manufacturing, processing, and other industrial applications.
- Commercial Water Treatment: Supports high-demand applications in hospitality, retail, and service industries.
- Cold Water Environments: Perfect for areas or operations where low water temperatures are a concern.
Maintenance Recommendations
- Pre-Treatment: Ensure feed water is dechlorinated to protect the membrane from oxidative damage.
- Storage: Keep wet-tested membranes sealed to maintain integrity.
- Initial Use: Discard permeate water from the first 24 hours of operation for optimal system performance.
Choose the AXEON HF5-4014 for Advanced Water Purification
The AXEON HF5-4014 Reverse Osmosis Membrane combines industry-leading technology, ultra-low energy requirements, and robust construction for unparalleled water purification performance. Upgrade your system today with this high-efficiency membrane.
