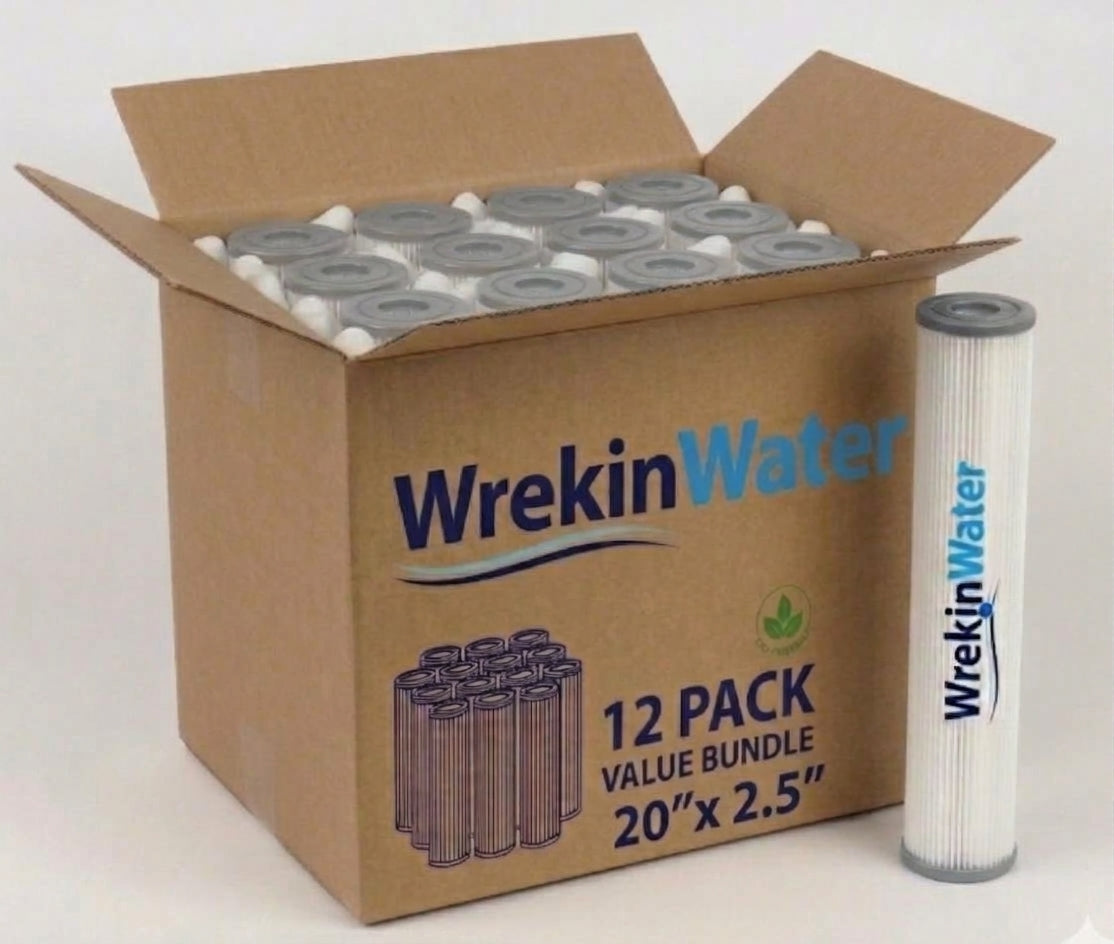

PL5-20 - 20in x 2.5 Pleated Filter 5µm

PL5-20 - 20in x 2.5 Pleated Filter 5µm

PL5-20

In stock

£21.00 inc. VAT
£17.50 ex. VAT
£21.00 inc. VAT
£17.50 ex. VAT
Shipping calculated at checkout.
Shipping is calculated at checkout
tick in circle

All our orders are sent with tracked courier services

tick in circle

Free Customer Support by experts

Product Description

PL5-20 5 Micron 20" Pleated Polyester Sediment Filter

The PL5-20 is a robust, 20-inch pleated sediment filter engineered to provide high-efficiency particulate removal for demanding water systems. With a 5-micron rating and 90% efficiency, this cartridge is the ideal choice for intercepting medium-to-fine sediment, such as sand, silt, and rust, before it reaches your interior plumbing or sensitive purification stages. The extended 20-inch length provides twice the surface area of standard 10-inch filters, resulting in superior sediment-holding capacity, longer service intervals, and consistent water pressure. Built for reliability, the PL5-20 features a heavy-duty polypropylene core and vinyl plastisol end-caps for a secure, bypass-free seal in residential and commercial applications.

Why Choose the PL5-20 Filter?

  • Extended Maintenance Cycles: The 20-inch length provides double the filtration surface area, significantly reducing the frequency of filter changes.

  • Optimal 5-Micron Filtration: Strikes the perfect balance between high-efficiency sediment capture and maintaining unrestricted water flow.

  • High-Flow Performance: Supports flow rates up to 50 lpm, making it suitable for high-demand whole-house water systems.

  • Universal Compatibility: Designed to fit all industry-standard 20-inch slimline filter housings.

3. Technical Specifications Table

Attribute Specification
Model PL5-20 Pleated Filter
Length 20"
Micron Rating 5 Micron
Efficiency 90%
Diameter 2.5" (Slimline)
Media Type Resilient Polyester
End-Cap DOE (Double Open Ended)
Max Flow Rate 50 lpm

Have You Ordered Before?

Existing/previous customers can find their previous orders with just a surname and a postcode. There’s no better way to find parts and replacements!

Get Started
PL5-20 - 20in x 2.5 Pleated Filter 5µm

PL5-20 - 20in x 2.5 Pleated Filter 5µm

£21.00 inc. VAT
£17.50 ex. VAT
£21.00 inc. VAT
£17.50 ex. VAT

Frequently asked questions

For full details on returns, refunds, eligibility, and timeframes, please refer to our complete Refund Policy here:

👉 Refund and Returns Policy

If you are unsure whether your item qualifies for return, please contact our team before sending anything back and we’ll be happy to help.

A 5-micron rating is widely considered the industry standard for general sediment removal. It is fine enough to capture the majority of visible particles (sand, grit, rust) that cause issues in home plumbing, but coarse enough to prevent premature clogging, making it a reliable, low-maintenance choice.

Under normal conditions, we recommend replacing the PL5-20 every 6 to 12 months. However, if you have high sediment levels or notice a decrease in water pressure, it is a sign that the filter has reached capacity and should be replaced sooner to maintain system efficiency.
