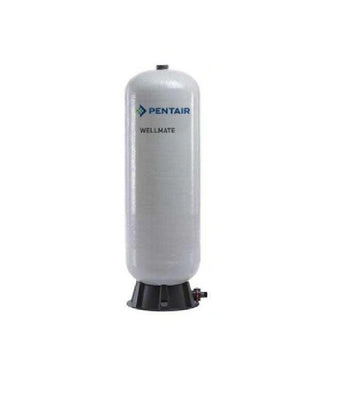

Wellmate Expansion Vessel 75 litre (38 litre storage volume) 1" NPT WM075

• Dimensions
  • Diameter 41cm
  • Height 81cm

Innovative Pentair WellMate solutions for water storage and pressure boosting applications offer you a world class product. From the high-density polyethylene inner liner to the fiberglass-wound and epoxy resin-sealed outer shell, these tanks are not prone to corrosion and require little or no maintenance and their light weight makes them easier and faster to install. WellMate tanks are certified to CE and NSF/ANSI and are 100% lead-free.

Features & Benefits

• Greater drawdown than comparably sized steel tanks yields greater efficiency.
• Quicker and less costly to install, usually requiring only one person and fewer man-hours.
• Wider pressure setting differential provides greater flexibility.
• Residential, Light Commercial and Pressure Boosting Applications.

Applications

• Residential
• Light commercial
• Pressure boosting

Specifications

Maximum operating pressure: 8 Bar (125 psi)
Temperature: 1 to 50°C

Note: Working storage volume is approximately half the vessel volume, eg. a 60 litre tank will hold approximately 30 litres of water
