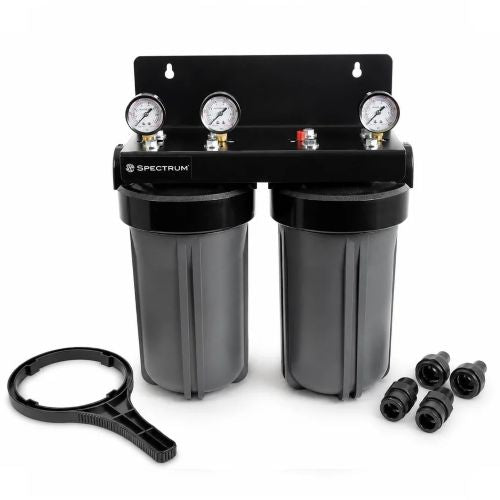

SFHS-2-10LD : SPECTRUM Aqualyze Double System Black Large Diameter 10" with Complete Adaptor Kit 110260

Spectrum 107139-EFHS-PK/PK-10LD-1

• Material: Polypropylene
• Configuration: 2 Cartridges (L: 10" x D: 4.5")
• Port Size: 1"
• Seal: Buna-N
• Temperature Rating (°C): 40
• Max Pressure (bar): 6.9
• Flow Rate (lpm): 50
• End-Cap: DOE - Double Open Ended

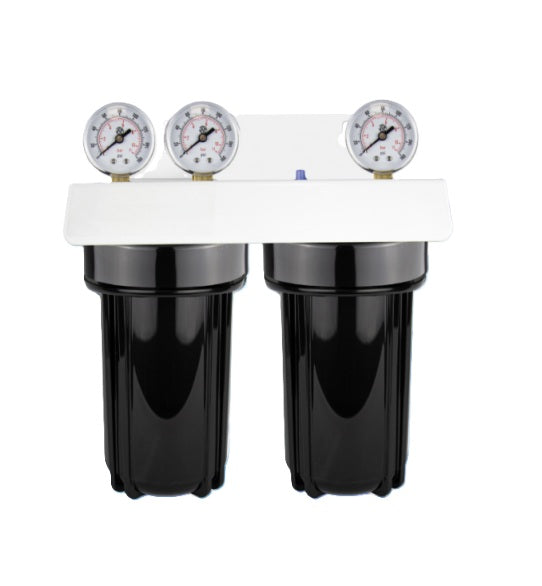

These smart systems have been conveniently pre-assembled for easy and quick installation. Costing less than the sum of their individual components combined. Coming complete with inlet and outlet gauges to monitor and maximise cartridge life, a spanner to assist with sump removal when performing maintenance and cartridge replacement. 1" BSP port sizes compatible with the most common pipework, the extensive combinations in this range provide endless options for applications and flow rates.

Filtration systems are tailored to suit individual applications dependant on the level of filtration required. Single housings provide an effective one stage process, used to target specific contaminants for example, bulk solids, sediment or organics. Two-stage systems are implemented when an expensive secondary filter, such as a fine filtration or water treatment cartridge, benefits from prefiltration, prolonging service life. If applications demand a full filtration cascade, a three-stage system is recommended, which delivers a spatial and economic solution.
