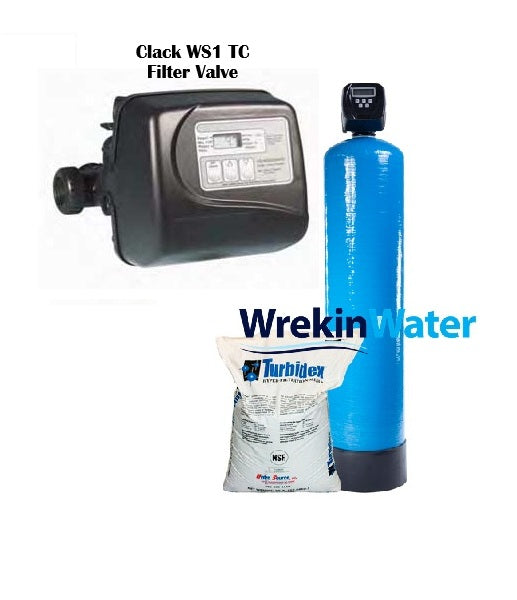

The 10x54TC Turbidex Sediment Filter is a professional-grade hyper-filtration system designed for superior sediment reduction in industrial and potable water systems. Utilizing 3rd generation filtration technology, this system delivers crystal clear water by filtering suspended solids down to a precision range of 3 to 5 microns.
Why Choose Turbidex™ Hyper-Filtration Media?
Turbidex™ is a unique, natural clinoptilolite ore that offers significant performance advantages over traditional filter sand and multimedia systems. Its angular, rough surface and microporous structure provide a surface area over 100 times greater than sand.
-
Advanced 3rd Generation Filtration: Employs mechanical straining, sedimentation, flocculation, physical absorption, electrostatic absorption, and ion exchange to treat water.
-
Superior Micron Efficiency: Effectively removes particles down to 3-5 microns, a drastic improvement over the 25-30 micron limit of standard sand filters.
-
Exceptional Water Clarity: Capable of producing high-quality filtrate with turbidity levels often reducing the need for additional downstream filtration.
-
Certified Safety: The filter media is Certified to NSF/ANSI Standard 61 for public health and safety.
Operational Efficiency & Cost Savings
The 10x54TC system is engineered for high-capacity loading, leading to reduced maintenance and significant operational savings.
-
Significant Water Savings: With a loading capacity up to 2.8 times greater than sand, the system allows for longer run times and less frequent backwashing.
-
Higher Flow Performance: Supports nominal service flow rates up to 15-20 gpm/ft² in pressure filters, allowing for high performance in a compact footprint.
-
Lightweight Media: The media weighs 50-70% less than traditional alternatives, resulting in easier installation and lower freight costs.
-
Downstream Protection: Enhanced performance results in cost savings for chemical dosing, membrane cleaning, and extended membrane life.
Reliable Control with Clack WS1 TC Valve
This system features the Clack WS1 TC (Time Clock) valve, designed for applications where simple, reliable operation is the priority.
-
User-Friendly: Simple time clock operation allows for easy scheduling of automatic backwash cycles.
-
Cost-Effective: A reliable alternative for sediment reduction tasks where advanced electronic features are not required.
Technical Specifications
-
Media Type: Natural Zeolite mineral granules (Clinoptilolite).
-
Filtration Efficiency: 3-5 microns.
-
Service Flow Rate: 1.5 m³/hr (System Rated).
-
Backwash Rate: 14-18 gpm/ft².
-
Bed Depth: 30-48 inches.
-
Bulk Density: 50 lbs./ft³.
