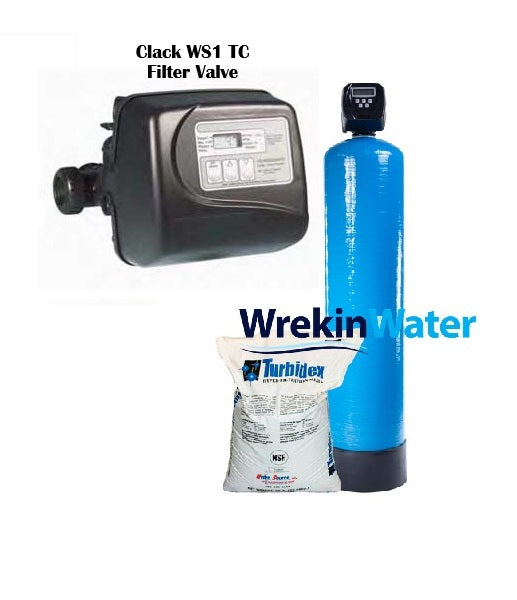

The 13x54TC Turbidex Sediment Filter is a high-efficiency water treatment system designed for both industrial and potable water applications. Powered by the reliable Clack WS1 TC Time Clock Filter Valve, this system provides a robust 2.5m³/hr flow rate while utilizing 3rd generation hyper-filtration technology to deliver crystal clear water.
Why Choose Turbidex™ Hyper-Filtration Media?
Turbidex™ is a unique, natural clinoptilolite ore that offers significant performance advantages over traditional filter sand. Its angular, rough surface and microporous structure provide a surface area over 100 times greater than sand.
-
3rd Generation Filtration: Employs mechanical straining, sedimentation, flocculation, physical absorption, electrostatic absorption, and ion exchange.
-
Superior Micron Efficiency: Filters suspended solids down to 3-5 microns, compared to the 12-30 micron limit of standard multi-media filters.
-
Exceptional Water Clarity: Capable of producing water with turbidity levels <0.1 NTU.
-
NSF Certified: Fully certified to NSF/ANSI Standard 61 for public health and safety.
Operational Efficiency & Cost Savings
The 13x54TC system is engineered to reduce your total cost of ownership through high-loading capacity and reduced maintenance.
-
Water Savings: Turbidex™ has a loading capacity up to 2.8 times greater than sand, leading to longer run times and less frequent backwashing.
-
High Flow Rates: Supports nominal service flow rates up to 15-20 gpm/ft² in pressure filters, allowing for high performance in a compact footprint.
-
Lightweight Media: Weighs 50-70% less than traditional media, simplifying installation and reducing freight costs.
-
Downstream Protection: High efficiency reduces costs for chemical dosing and membrane cleaning, while extending the life of downstream cartridges.
Reliable Control with Clack WS1 TC Valve
This system features the Clack WS1 TC (Time Clock) valve, ideal for applications where simplicity and reliability are paramount.
-
User-Friendly: Simple time clock operation for easy scheduling of backwash cycles.
-
Cost-Effective: A lower-cost alternative to the WS1-CI version, perfect for standard sediment reduction tasks.
Technical Specifications
-
Media Type: Natural Zeolite mineral granules (Clinoptilolite).
-
Filtration Efficiency: 3-5 microns.
-
Flow Rate (Service): Up to 20 gpm/ft² (Peak).
-
Backwash Rate: 14-18 gpm/ft².
-
Bed Depth: 30-48 inches.
-
Bulk Density: 50 lbs./ft³.
