Atlas Rack Mount UV System - Duplex 56 lpm
Atlas Rack Mount UV System - Duplex 56 lpm
SKU:Atlas Rack Duplex
Share
Product Description
Product Description

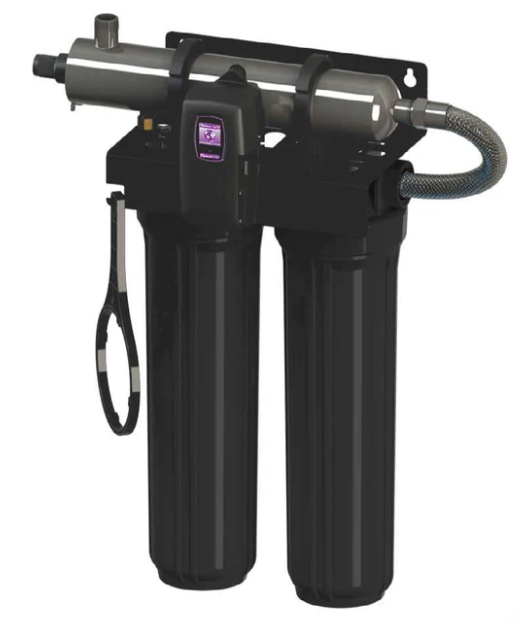

Atlas Rack Mount UV System
The Atlas Rack Mount UV System is the ultimate all-in-one water treatment solution, blending advanced UV technology with high-efficiency filtration. Designed for simple installation and outstanding performance, it’s ideal for both residential and commercial applications.
This system caters to flow rates of 8 or 15 gallons per minute (GPM) and features a 5-micron sediment filter, along with an optional carbon filter for improved taste and odour. Built with a modular design and customizable options, it sets a new benchmark in water treatment excellence.
Key Features
All-in-One System
- Compact and easy to install with “in & out” connection.
- Universal mounting for left or right feedwater access.
Effective Filtration
- Standard 5-micron sediment filter for particle removal.
- Optional high-capacity carbon filter to enhance taste and odor.
Innovative UV Technology
- Durable, polished 316L stainless steel reactors for reliable performance.
- LED lamp countdown and Lamp Key Technology ensure optimal maintenance.
Advanced Controller
- Full-color screen displays diagnostics, status, and maintenance alerts.
- Customizable interface for branding, languages, or dealer-specific information.
Future-Ready Features
- Expandable modules, including UV sensors, flow meters, and solenoid modules.
- Energy-saving options to reduce power consumption during low/no-flow conditions.
Specifications
| Feature | 8 GPM Model | 15 GPM Model |
|---|---|---|
| Flow Rate | 8 GPM (30.3 LPM) | 15 GPM (57 LPM) |
| UV Lamp | 20W (standard) | 45W (high-output) |
| Electrical Requirements | 90-265V, 50-60Hz, 1.5A Max | 90-265V, 50-60Hz, 1.5A Max |
| Chamber Material | Polished 316L stainless steel | Polished 316L stainless steel |
| Operating Pressure | 0.7-8.3 bar (10-120 psi) | 0.7-8.3 bar (10-120 psi) |
| Operating Temperature | 2-40°C (36-104°F) | 2-40°C (36-104°F) |
| Lamp Replacement Model | RL-53 | RL-H53 |
Optional Add-Ons
- UV Sensor Module for real-time UV intensity monitoring.
- Solenoid Module to shut off in case of lamp failure or low UV levels.
- Custom Dealer Programmer for branding customization and QR codes.
- Flow Meter Module for automatic energy reduction during low flow.
- Water Quality Monitor for remote alarm and status tracking.
Warranty Details
Atlas UV offers top-tier reliability with industry-best warranties:
- Reactors: 10-year limited warranty.
- Electronics: 3-year limited warranty.
- UV Lamps & Quartz Sleeves: 1-year limited warranty.
Why Choose the Atlas Rack Mount UV System?
- Hassle-free installation with universal connections.
- Tailor the system to your needs with future-ready modular add-ons.
- Enjoy cleaner, better-tasting water with integrated filtration and UV technology.
- Have peace of mind with the best warranties in the industry.
Experience unparalleled water quality and system reliability with the Atlas Rack Mount UV System. Upgrade today!
