L57 - Atlas L57 UV System - 56.8 lpm (3.4m3/hr) & Luminor LB5-152, Luminor LB5-153

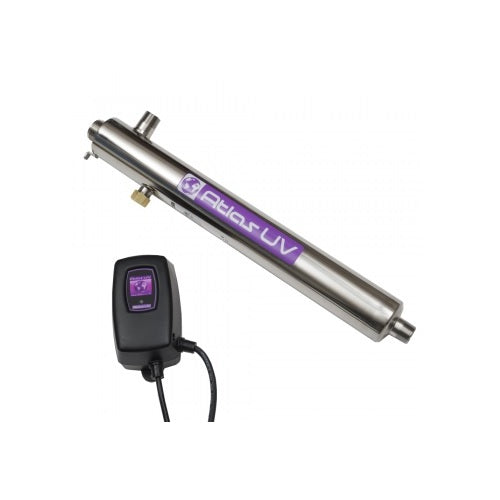

Atlas L57 UV Unit – High-Performance UV Disinfection for Larger Homes

The Atlas L57 UV Unit offers superior water disinfection for households with higher water demands. Designed to treat flows of up to 56.8 L/min (3.4 m³/hr), this system is ideal for 3-5 bedroom properties, ensuring safe and reliable drinking water treatment for your entire home. Built with advanced features and exceptional durability, the Atlas L57 guarantees clean, safe water with minimal effort.

Key Features

•  Engineered for Larger Properties
  Tailored for medium to large households, the Atlas L57 UV Unit delivers a dependable UV dose of 30 mJ/cm², ensuring robust water disinfection even at peak flow rates during its 1-year lamp lifespan.
•  WRAS-Certified for Safety and Quality
  This WRAS-approved unit adheres to stringent safety and performance standards, providing peace of mind that your water supply is treated safely and effectively.
•  Premium Stainless Steel Construction
  Featuring a durable 304 stainless steel chamber, this pressure-rated design ensures optimum UV performance and long-lasting reliability under various operating conditions.
•  Easy-to-Use Colour LCD Display
  The system’s intuitive colour LCD screen offers real-time updates, including lamp life countdown, system operation days, and helpful maintenance reminders for stress-free system management.
•  Quick and Seamless Installation
  The plug-and-play setup simplifies installation, integrating effortlessly into your home’s water treatment system. Compact dimensions ensure it fits neatly into your space.
•  Simplified Maintenance
  Changing the UV lamp is a breeze with the twist-and-turn mechanism, requiring no tools or interruption to water flow for hassle-free upkeep.
•  Versatile Power Compatibility
  Operates effectively on 90-265V input (50-60Hz), making it compatible with both mains power and true sine wave generators for versatile installation options.
•  Upgradeable Design for Future Expansions
  Adapt the Atlas L57 to your changing needs with optional upgrades, including UV sensors, solenoid outputs, remote alarms, and 4-20mA outputs for extended functionality.

Specifications

•  Flow Rate: 56.8 L/min (3.4 m³/hr) at 30 mJ/cm²
•  Port Size: 1” MNPT
•  Lamp Power: 50W
•  Power Supply: 62W, European CEE 7/7 Plug Type
•  Reactor Dimensions: 6.4 x 101.6 cm (2.5 x 40.0”)
•  Chamber Material: 304 Stainless Steel, A249 Pressure-Rated Tubing
•  Operating Pressure: 0.7-10.3 bar (10-150 psi)
•  Operating Water Temperature: 2-40°C (36-104°F)

Why Choose the Atlas L57 UV Unit?

•  Precision Canadian Manufacturing
  Proudly manufactured in Canada, this CE-certified UV system reflects top-tier craftsmanship and quality. Backed by UK-based support for sales, spares, and service, the Atlas L57 ensures reliable operation.
•  Efficient and Reliable Maintenance Support
  QR codes on the unit enable direct access to service resources and spare parts, ensuring your system stays operational without delay.

The Atlas L57 UV Unit is the ultimate solution for households seeking efficient, easy-to-use UV disinfection. With its premium build, cutting-edge features, and user-friendly maintenance procedures, it provides dependable protection for your home’s water supply. Ensure your family enjoys safe, clean drinking water – invest in the Atlas L57 UV Unit today!

Optional Expansion Modules

Take full advantage of the Infinite Expandability Port (IEP) to enhance the capabilities of your Atlas UV Unit with the following modules:

•  UV Sensor Module
  Monitors UV intensity at the critical wavelength of 254nm and displays the reading on the controller for precise performance tracking.
•  Solenoid Module
  Controls a remote solenoid valve (sold separately) to shut off water flow in case of lamp failure or low UV conditions.
•  Water Quality Monitor
  Provides remote alarm notifications and visual LED feedback for system status from up to 46 meters (150 feet) away.
•  Ultrasonic Flow Meter
  Automatically adjusts system power to save energy during periods of low or no flow, reducing water temperature and minimizing fouling risk.
•  TRV (Temperature Relief Valve)
  Releases a small amount of water to cool the system during extended no-flow conditions or critical temperature applications.
•  Cooling Fan (3.5in Chambers Only)
  Maintains ideal operating temperatures to ensure consistent performance without wasting water.
•  4-20mA Module
  Enables signal transfer to remote devices, such as data loggers or control systems, for real-time monitoring and advanced integration.
•  Remote Alarm Module
  Sends status updates to a remote dry-contact alarm, ensuring immediate notifications for peace of mind.
