Autotrol 255 Brine Tube 3/8" with Gauze, no air check 1.2m E01360 Glued

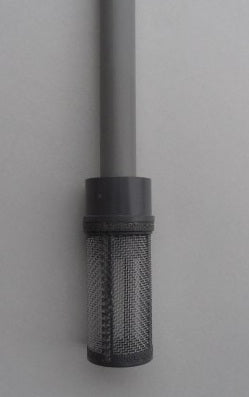

The E01360 is the genuine-spec 3/8" brine tube for the Autotrol 255 control valve, a 1.2m length of glued tubing fitted with a gauze strainer at the salt tank end to draw brine solution up from the bottom of the brine well while keeping salt sediment and debris out of the line. This version has no integral air check valve, so it's the correct choice where the air check is a separate in-line component rather than built into the tube assembly. Anyone replacing a split, kinked or blocked brine tube on a 255-based softener needs this part, and WrekinWater stocks the exact genuine-spec length and fitting.

Technical specifications

Symptoms that mean you need this part

• The brine tube is cracked, kinked or split along its length
• Brine draw is weak or inconsistent because the gauze strainer is clogged with salt sediment
• The tube has come loose or separated at the glued joint
• You're replacing a damaged or missing brine well assembly and need the correct length and fitting

Why it fails / why it matters

The brine tube is the physical path that carries saturated brine solution from the bottom of the salt tank, through the gauze strainer that filters out undissolved salt and sediment, up to the control valve where it's drawn into the resin bed during regeneration. Over years of use the gauze can clog with fine salt residue or mineral fines settling in the brine well, restricting flow, while the tube itself is prone to kinking if the brine well fittings are disturbed, or splitting with age and UV exposure if any section runs where it's exposed to light. Because this is a glued rather than push-fit assembly, a failed tube generally needs replacing as a complete length rather than being repaired in place.

Why buy this from WrekinWater

WrekinWater has supplied genuine-spec Autotrol 255 brine components for over 15 years from its Bettisfield, Shropshire base, stocking the correct 1.2m gauze-fitted tube so you're not left guessing at length or connection type. With more than 50,000 customers served and an Excellent Trustpilot rating, and as specialists across Pentair Fleck, Autotrol, Clack and Kinetico parts, WrekinWater keeps the everyday brine-line consumables in stock alongside the bigger valve components.

How to fit it

1. Isolate the softener at the bypass valve and disconnect the brine line at the control valve end
2. Lift the brine well cover and withdraw the existing tube and gauze assembly from the salt tank
3. Cut or unglue the old tube from its fitting at the control valve or air check connection
4. Feed the new E01360 tube down into the brine well with the gauze end lowest, checking it reaches the bottom without kinking
5. Solvent-weld the glued end to the appropriate fitting at the control valve or air check connection, allowing the joint to cure fully before use
6. Refit the brine well cover, restore the water supply, and run a manual regeneration to confirm brine draw is strong and consistent
