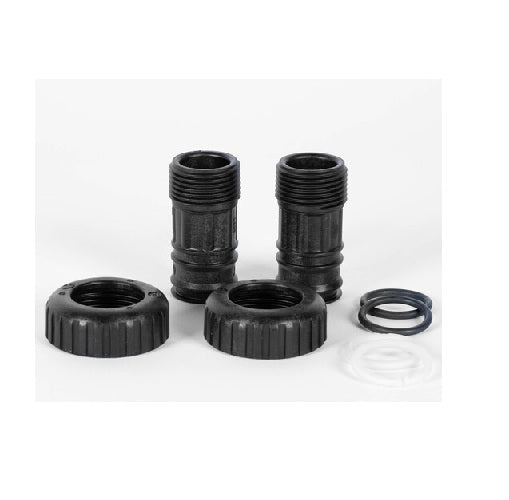

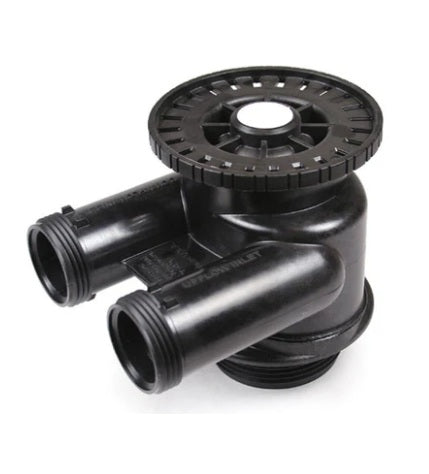

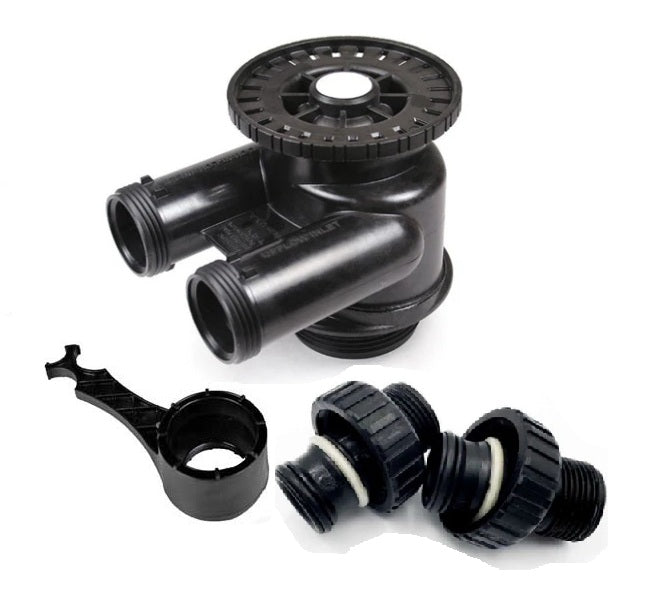

Clack 1190FP In/Out Head with Refill Port and Screen D1220-01

ELFI MSCR-PP Micron 1½"-7 Self-Cleaning Suction Scanner Filter | 1–20 Micron | 2.5–10 m³/hr (Sintered Fibre 3D)

The ELFI MSCR-PP 1½"-7 Suction Scanner Self-Cleaning Filter is an advanced, fully automatic filtration solution engineered for industrial, commercial, and municipal water treatment environments. Featuring Sintered Fibre 3D technology, this system delivers precision filtration from 1 to 20 microns, providing reliable removal of suspended solids while maintaining constant flow — with no downtime and zero consumable filter cartridges.

This model is ideal for high-demand applications needing continuous, maintenance-efficient filtration with reduced operating costs and enhanced system protection.

⭐ Key Features

✔ Continuous Self-Cleaning — No System Downtime

• Cleaning cycle activates automatically
• Filtration continues uninterrupted during cleaning
• Eliminates manual cleaning and frequent shutdowns

✔ Zero Cartridge Replacement Costs

• No disposable filter cartridges required
• Saves thousands over the system lifespan
• Environmental benefits — prevents cartridge waste going to landfill

✔ High-Efficiency Sintered Fibre 3D Filtration

• Precision particle removal from 1–20 µm
• Highly effective at capturing non-deformable suspended solids
• Protects sensitive downstream equipment and membranes

✔ Reduced Maintenance & Operating Costs

• Lower energy consumption
• Reduced discharge water
• Less downtime = increased plant availability

🔧 How the Filtration Works

Filtration Cycle

1. Water enters the filter via the IN inlet.
2. It passes from inside to outside of the sintered fibre cylinder.
3. Suspended solids equal to or larger than the micron grade are retained.
4. Clean, filtered water exits from the OUT port.

Automatic Regeneration Cycle

When the system detects a pressure drop (ΔP) of 0.3–1 bar, the automatic cleaning cycle begins:

1. Differential pressure switch signals the discharge valve
2. Suction nozzles create communication with the external environment
3. Electric motor rotates the suction scanners across the filter media
4. Collected solids are removed through the discharge port
5. Entire cleaning cycle takes approximately 15 seconds

Filtration continues during regeneration — system flow is never interrupted.

⚙️ System Control

The integrated switchboard manages all washing phases:

• Initiates cleaning using differential pressure signal
• Provides alarm signalling for any washing-cycle faults
• Allows optional manual control of washing cycles
• Solenoid valve is pneumatically operated
• Interfaces easily with existing plant control systems

🏭 Ideal Applications

This model is widely used in:

✔ UF (Ultrafiltration) pre-filtration
✔ Industrial and municipal water treatment plants
✔ Evaporation and cooling tower protection
✔ Spray nozzle protection
✔ Heat exchanger protection
✔ Irrigation systems
✔ Sea water pre-treatment

📈 Performance

• Micron Rating: 1–20 µm
• Flow Rate: 2.5–10 m³/hr
• Connection Size: 1½"
• Filtration Media: Sintered Fibre 3D
• Cleaning Cycle: ~15 seconds
• Operation: Fully automatic or manual

🌟 Why Choose ELFI MSCR-PP 1½"-7 from Wrekin Water?

• Industry-leading self-cleaning technology

• No consumables, no downtime

• Long service life with reduced operating costs

• Highly durable and ideal for demanding filtration environments

• Trusted by professionals in water treatment, agriculture, and commercial facilities

📦 Upgrade Your Water Treatment System Today

Choose the ELFI MSCR-PP 1½"-7 for unmatched efficiency, sustainability, and continuous protection for your industrial water processes.
