General Conditions for Installation
Connection Requirements
-
Connection IN & OUT: 1"
-
Drain Connection: 3/4" or 1" (Dependent on DLFC flows over 10 gpm)
Electrical Specifications
-
Electrical Rating: 230V 50Hz with 12V Transformer
-
Maximum Power Rating: 6W
-
IP Protection Class: Double isolated transformer
Water & Pressure Parameters
-
Minimum Inlet Pressure: 200 kPa (2 bar)
-
Maximum Inlet Pressure: 600 kPa (6 bar)
-
Vacuum: No allowance
-
Average Pressure Loss: 100 kPa (1 bar) under normal conditions
-
Minimum & Maximum Water Temperature: 5°C to 35°C
Recommendations
- Always install a 25-micron cartridge filter before the softener to ensure optimal performance and system longevity.
Resin Specifications
-
Type: Strong acid cation resin (food-grade quality)
-
Life Span: 15 years under normal circumstances
-
Ion Exchange Efficiency: Optimized for average salt consumption of 150 g/L

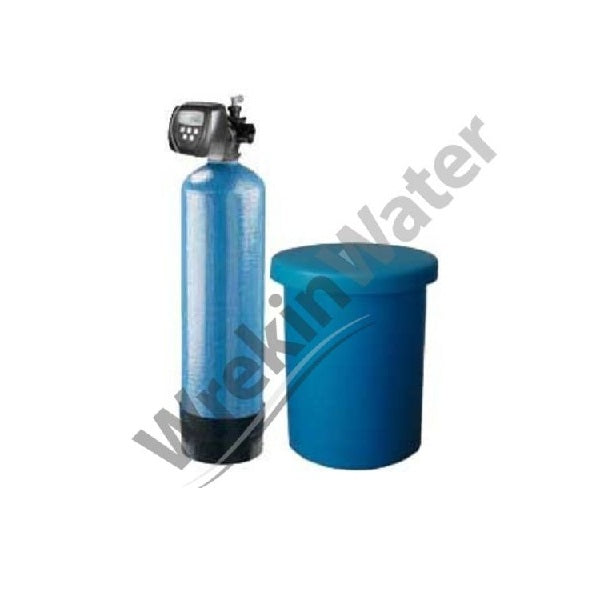

Why Choose Simplex Water Softener?
With its customizable settings, durable design, and energy-efficient operation, the Simplex Water Softener is the preferred choice for businesses reliant on superior water quality. Whether you're running a hotel, laundry, or manufacturing plant, this system provides a dependable supply of softened water, improving operational efficiency and reducing costs over time.

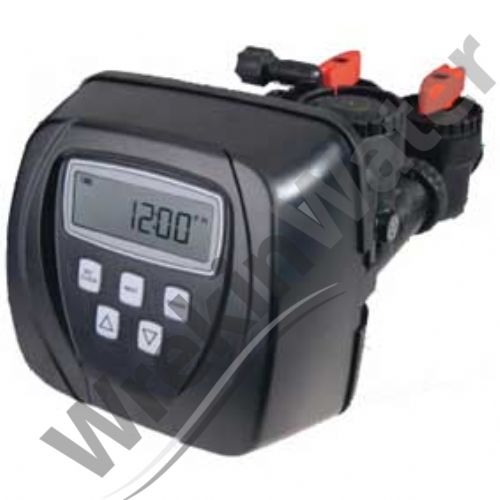

Upgrade your water-softening system today with the Simplex Water Softener featuring the Clack WS1 CI Digital Meter Controller!
