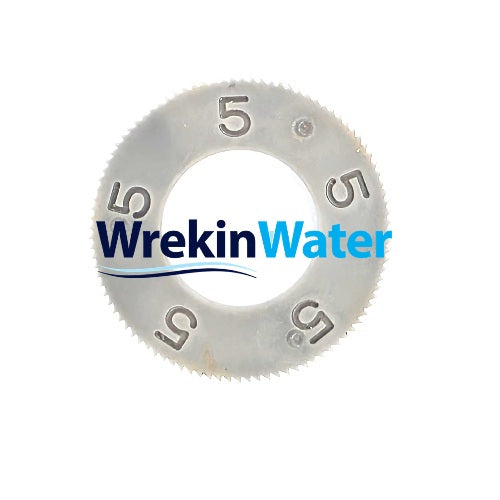

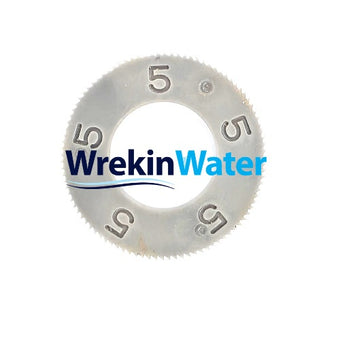

Disc 5 - Kinetico Meter Disc - Up to max hardness of 305ppm (mg/) 1508

The Kinetico Meter Disc 5 (part number 1508) is a small calibration disc supplied by WrekinWater that sets a Kinetico non-electric water meter for water hardness up to 305ppm (mg/L), suiting properties in very hard water regions, often on chalk or limestone-fed supplies. Getting the disc right at this hardness level matters more than ever, since the resin bed's usable capacity per litre drops sharply as hardness rises.

Technical specifications

Symptoms that mean you need this part

• Heavy limescale build-up on appliances, showerheads or kettles despite a softener that appears to be functioning
• A hardness test has returned a reading close to or above 250ppm and the current disc doesn't reflect that
• The softener seems to be regenerating far less frequently than a very hard water supply would require
• You've recently switched supply, moved to a very hard water postcode, or had a water company hardness update

Why it fails / why it matters

At very hard water levels, each litre passing through the resin bed uses up softening capacity much faster than on a moderate supply, so the meter's hardness disc has a bigger job to do in calculating when regeneration is due. If a disc rated for a lower hardness is left fitted on a very hard water supply, the meter significantly under-counts capacity usage, and the softener can run well past its true capacity before regenerating, letting noticeably hard water through in the meantime. This is a calibration issue rather than a fault, and is resolved simply by fitting the disc that matches your confirmed hardness reading.

Why buy this from WrekinWater

WrekinWater has served more than 50,000 customers over 15 years from its base in Bettisfield, Shropshire, and stocks the complete range of genuine Kinetico meter discs alongside Pentair Fleck, Autotrol and Clack parts for very hard water households and businesses. As a UK-registered company (Company No. 11000488) rated Excellent on Trustpilot, WrekinWater is well placed to help you get exactly the right disc for your test result.

How to fit it

1. Get a current, accurate water hardness test result for your property in ppm (mg/L)
2. Confirm the reading falls within Disc 5's range, up to 305ppm (mg/L)
3. Turn off the water supply to the softener and relieve system pressure before opening the meter housing
4. Open the Kinetico water meter body and remove the disc currently fitted
5. Fit Disc 5 (part number 1508), ensuring it seats correctly, then reassemble the meter housing
6. Restore the water supply and confirm the meter is turning freely and the softener regenerates on a schedule matched to very hard water
