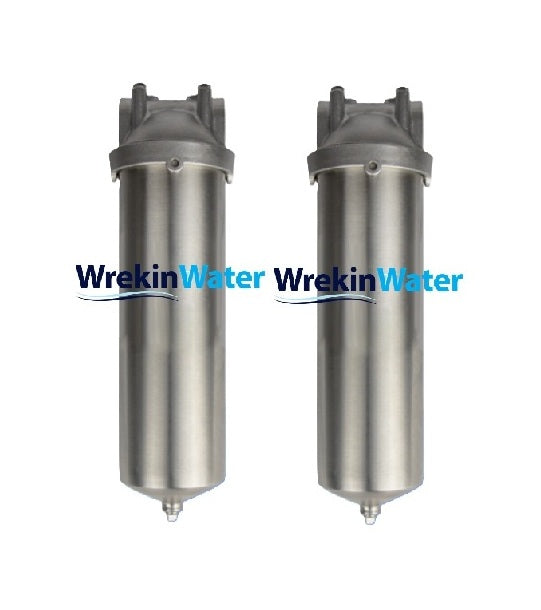

10in Inox 3/4" Ports - Wrekin CORE RANGE : Stainless Steel Filter Housing 10" with 3/4" Ports 107822

FH-SS-1-R10-3/4-E-C Wrekin CORE RANGE : Stainless Steel Filter Housing 1 x 10" 3/4" Ports 107822

• Material: 316L Stainless Steel
• Configuration: 1 Cartridge (L: 10" x D: 2.5")
• Port Size: 3/4"
• Seal: EPDM
• Temperature Rating (°C): 135
• Max Pressure (bar):17
• Flow Rate (lpm): 25
• End-Cap Compatibility: AA / DOE

Key Features

•  Robust Construction: Made from high-quality, corrosion-resistant 316L stainless steel, ensuring longevity and reliability.
•  Versatile Port Options: Equipped with 1/2", 3/4", and 1" BSP ports, with a 4" option for limited space scenarios.
•  Efficient Cartridge Changeout: Features a single top nut for quick cartridge access and a base drain to minimize spillage.

Benefits

•  Cost-Effectiveness: Offers premium stainless steel durability at an entry-level price point.
•  Ease of Installation: Requires only 60mm ground clearance, simplifying setup and maintenance.
•  Wide Application Range: Designed for DOE cartridges with radial flow, suitable for diverse filtration needs.

Technical Details

•  Maximum Temperature: Capable of withstanding up to 135°C.
•  Maximum Pressure: Handles pressures up to 17.2 bar.
•  Certifications: Complies with DWI Regulation 31 and PED97/23/EC standards for safety and performance.

Applications

Ideal for commercial and industrial filtration, the Core INOX  Housing is perfect for high-temperature installations and high-pressure scenarios. Whether addressing commercial filtration needs or tackling industrial challenges, this housing delivers reliable, high-quality performance without breaking the bank.
