ELFI MSCR-PP Self-Cleaning Suction Scanner Filter – 1½" Ports | 1–20 Micron | 2.5–10 m³/hr Flow Rate
The ELFI MSCR-PP Micron Self-Cleaning Filter is a high-performance, industrial-grade filtration unit engineered for demanding commercial and municipal water treatment applications. Using advanced Sintered Fibre 3D filtration media, this system provides accurate particulate removal from 1–20 microns while maintaining continuous operation — no downtime, no cartridge changes, and dramatically reduced maintenance costs.
Designed for reliability and long service life, the MSCR-PP is ideal for facilities wanting a fully automatic, low-maintenance filtration solution that protects downstream equipment and ensures consistent water quality.
Key Features
Automated Self-Cleaning System (No Downtime)
- Cleaning cycles activate automatically based on differential pressure
- No interruption to service — filtration continues during cleaning
- Prevents blockages and maintains optimal flow rates
Zero Cartridge Waste
- No disposable cartridges required
- Significant savings on consumables
- Environmentally friendly — reduces landfill waste
High-Efficiency Particle Removal
- 1–20 micron filtration using Sintered Fibre 3D technology
- Removes suspended solids and protects UF membranes, heat exchangers, nozzles, and more
Reduced Operational Costs
- Lower energy consumption
- Reduced discharge water use
- Minimal maintenance
Technical Performance
- Micron Rating: 1–20 µm
- Flow Rate: 2.5–10 m³/hr (depending on filtration grade)
- Connection Size: 1½"
- Filtration Media: Sintered Fibre 3D
- Cleaning Cycle Duration: ~15 seconds
- Control: Automatic or manual via electronic switchboard

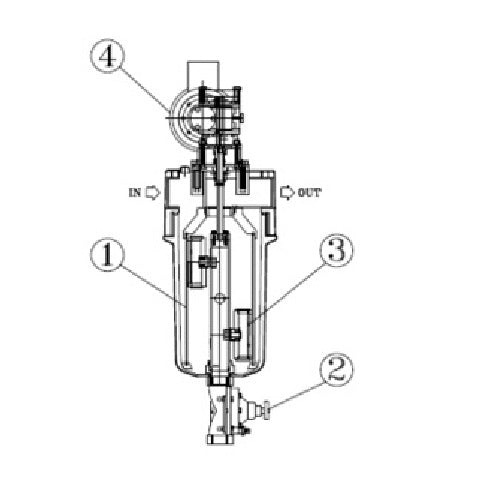

How It Works
Filtration Phase
Incoming water enters through the IN port and passes from the inside to the outside of the sintered fibre cylinder. Any suspended solids equal to or larger than the micron rating are captured within the cylinder.
Filtered water exits through the OUT port.
Automatic Regeneration (Self-Cleaning)
When pressure drop (ΔP) reaches the set value (0.3–1 bar):
-
A signal triggers the discharge valve
-
Suction nozzles engage with the outside environment
-
The motor rotates, sweeping the nozzles across the cylinder
-
Dirt is discharged through the waste outlet
-
Cycle completes in approximately 15 seconds
This ensures continuous operation with no manual cleaning required.
System Control
- Differential pressure switch initiates wash cycles
- Switchboard manages all cleaning phases
- Alarm output available for integration with plant control systems
- Pneumatically actuated solenoid valve
- Optional manual override
Ideal Applications
✓ Pre-filtration in UF (Ultrafiltration) systems
✓ Municipal & industrial water treatment plants
✓ Evaporation and cooling tower protection
✓ Spray nozzle protection systems
✓ Heat exchangers
✓ Agricultural & irrigation systems
✓ Sea water pre-treatment
Why Choose the ELFI MSCR-PP from Wrekin Water?
- Reduces downtime and maintenance labour
- Protects expensive downstream equipment
- Long-term cost savings without disposable filter cartridges
- Environmentally friendly operation
- Trusted performance for commercial and industrial treatment systems
Order the ELFI MSCR-PP Self-Cleaning Filter Today
Upgrade to a high-efficiency, low-maintenance filtration solution that delivers consistent performance and long-term reliability for industrial and commercial water treatment operations.
