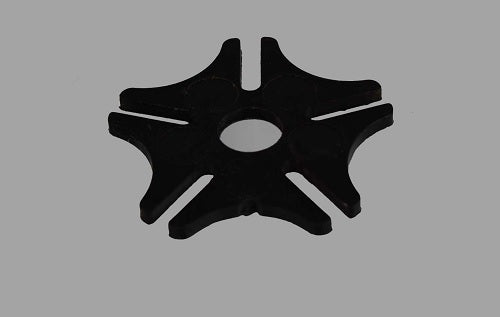

FLECK 14896 Geneva Wheel for Fleck 9000/9100/9500 Valves

The FL14896 Geneva wheel is the indexing component inside Fleck 9000, 9100 and 9500 valves that converts continuous rotation from the drive motor into the precise, stepped movement needed to advance the piston through each regeneration stage. WrekinWater stocks this genuine-fit wheel to fix a valve that has stopped indexing correctly through its cycle.

Technical specifications

Symptoms that mean you need this part

• The valve stalls between regeneration stages instead of moving cleanly to the next one
• A grinding or clunking noise from the drive assembly as it tries to index
• The cycle position display doesn't match what the valve is actually doing
• Regeneration takes noticeably longer than normal or never completes

Why it fails / why it matters

A Geneva wheel mechanism translates smooth, continuous motor rotation into the sharp, stepped movement needed to click the valve precisely from one regeneration stage to the next, using a pin that engages and disengages with slots on the wheel. Repeated engagement wears the pin and slot edges, and if a tooth chips or the pin wears round, the mechanism can slip or fail to engage fully - so the valve either stalls mid-cycle or skips between stages instead of indexing cleanly.

Why buy this from WrekinWater

WrekinWater has served more than 50,000 customers over 15 years and stocks Pentair Fleck, Autotrol, Clack, Kinetico and other major brands, so the FL14896 is supplied as a genuine-fit part for the Fleck 9000, 9100 and 9500 drive assembly. As a family run company based in Bettisfield, Shropshire rated Excellent on Trustpilot, we're happy to help confirm this is the right part before you take the drive housing apart.

How to fit it

1. Turn off the water supply and isolate power to the valve before opening the drive housing.
2. Remove the drive housing cover to access the gear train and Geneva wheel mechanism.
3. Note the orientation of the wheel and its engagement pin before removing the old part.
4. Lift out the worn Geneva wheel and clean any plastic debris from the housing.
5. Fit the new FL14896 wheel in the same orientation, ensuring the pin engages correctly with the drive gear.
6. Refit the housing cover, restore power and water, then run a manual regeneration to confirm each stage indexes smoothly.
