Product Description

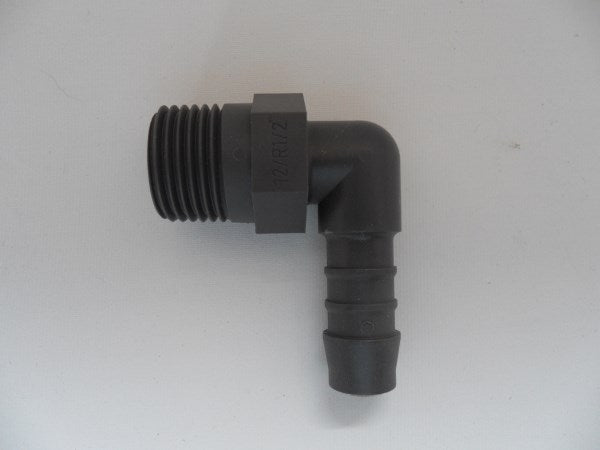

The Fleck 21511SP is a genuine 90-degree ½ inch hose barb fitting for Fleck 9000 and 9100 series control valves, used to connect flexible tubing such as brine or drain lines at a right angle, and WrekinWater stocks this small but essential fitting for owners dealing with a leaking or cracked connection.
Technical specifications
| Compatible valves | Fleck 9000, Fleck 9100 |
| Fitting angle | 90 degrees |
| Thread/barb size | ½" x ½" |
| SKU | 0401327827 |
| Material | Engineering plastic |
| Sold as | Single hose barb fitting |
Symptoms that mean you need this part
- A small but steady drip or spray of water around a tubing connection
- Visible cracking, whitening or brittleness in the plastic of the fitting
- The connected hose pulling loose or slipping off the barb under pressure
- Damp patches or mineral staining building up beneath the valve near the tubing
Why it fails / why it matters
Small hose barb fittings like the 21511SP are constantly under mains pressure and take the mechanical strain of the flexible tubing pulling and flexing against them, while also being exposed to the same hard water minerals as the rest of the valve. Over time the plastic can become brittle, especially if it's been over-tightened during a previous installation or exposed to temperature extremes, and once it cracks or the barb ridges wear smooth, the tubing can no longer hold a tight seal, resulting in a leak at that connection point.
Why buy this from WrekinWater
WrekinWater has served more than 50,000 customers over 15 years and, based in Bettisfield, Shropshire, stocks genuine small parts for Fleck, Autotrol, Clack and Kinetico valves, including exact-fit fittings like the 21511SP for 9000/9100 series systems, so a low-cost part doesn't mean a compromise on fit. As a UK-registered company (No. 11000488) rated Excellent on Trustpilot, WrekinWater makes it simple to order the small connectors that keep a softener installation leak-free.
How to fit it
- Turn off the water supply and place the valve into bypass
- Release any residual pressure in the line before disconnecting the tubing
- Slide back or cut free the tubing clip and pull the flexible hose off the old barb fitting
- Unscrew the damaged 90-degree barb from the valve body
- Screw in the new Fleck 21511SP hose barb by hand until snug, avoiding overtightening
- Reconnect the tubing, restore the water supply, take the system off bypass and check the joint for drips
Technical Resources
Frequently asked questions
FLECK 21511SP HOSE BARB 90° ½” X ½” 9000/9100
