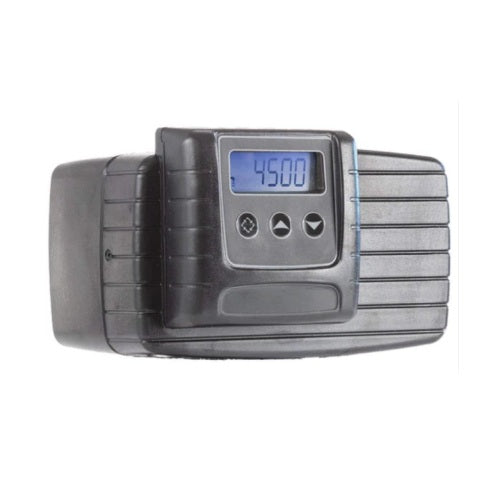

Fleck PH56SXT-003 - Power Head Assembly 4600/5600 SXT Eco

Replacement power Head for this valve below

Fleck 5600 SXT | Eco SXT Down Flow 0/1.5/0.25 (V560X6)

Key Features:

•  Includes Timer, Transformer, DLFC, and Top Filter Screen: Comprehensive components for efficient operation.
•  Yoke Not Included: Fittings on the back of the valve are not included, allowing for customizable installation.
•  High Performance: Accommodates softener tanks up to 12" in diameter with robust backwash capabilities.
•  Durable Design: Features two non-corrosive, UV-resistant, fibre-reinforced polymer valve body designs for downflow and up-flow regeneration.
•  Metered Control: Ensures precise water usage measurement for optimal efficiency.

Features and Benefits:

•  Large Backlit LCD Display: Easy-to-read display with 3 push buttons for user-friendly operation.
•  Advanced Programming: Six adjustable cycle times for customized performance.
•  High Service Flow Rate: Up to 4.5m³/h, ensuring efficient water softening.
•  Robust Valve Body: Made from Glass PPO (Polyphenylene oxide) for enhanced durability.

Technical Characteristics:

•  Backwash Flow: 1.6 m³/h
•  Inlet / Outlet: 3/4", 1"
•  Service Flow: 4.5 m³/h
•  Tank Size: Compatible with 6", 10", and 12" tanks

Applications:

The Fleck 5600 SXT is ideal for upgrading or maintaining water treatment systems in both residential and commercial settings. Its user-friendly, easily programmable design and modular construction simplify disassembly and maintenance, ensuring optimal system performance.
