Harvey G1898 Shuttle Valve Assembly | For 1" H25 & H30 Twin Tank Softeners

Technical production issues have restricted supplies of the H25 Shuttle. Our stocks are from new production and modified tooling but supplies are still restricted for the time being. If we sell out before fresh stocks arrive, the listing will display SOLD OUT

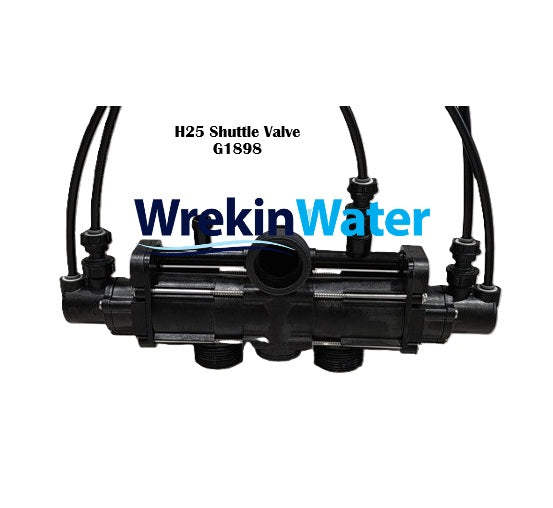

The Harvey G1898 Shuttle Valve Assembly is the critical switching component for large-format H25 and H30 series water softeners. Designed for systems with 1-inch inlet/outlet ports, this assembly manages the internal water flow between the twin resin tanks.

If your high-capacity system is failing to regenerate or is wasting water, the G1898 is the primary mechanical part required to restore OEM-standard performance.

⚠️ Identification Guide: Is this the right part?

Before ordering, please verify your system type:

• H25/H30 Models: These units feature a separate, standalone salt bin and larger 1-inch plumbing connections. This G1898 is the correct fit.

• H2O Series: If your softener is a compact "block salt" model where the tanks and salt are in the same cabinet (3/4-inch ports), you require the G1491 kit instead.

Key Symptoms: Why Replace the G1898?

• Constantly Running to Drain: If you hear water flowing into the waste pipe 24/7, the shuttle valve is likely stuck or failing to seat. This is the #1 diagnostic starting point.

• Hard Water Breakthrough: A worn shuttle can allow hard water to bypass the resin tanks entirely, leading to limescale in your hot water system.

• Failure to Switch Tanks: In twin-tank systems, the shuttle must toggle between cylinders. If one tank stays "on" until it's exhausted without switching, the G1898 is likely at fault.

• Internal Pressure Leaks: While the meter or idling gear can cause issues, a leaking shuttle assembly is the most frequent cause of "ghost" drainage.

Features & Benefits

• High-Flow Engineering: Specifically ported for 1-inch systems to ensure zero drop in water pressure across large properties.

• Complete Assembly: A brand-new, factory-sealed unit ready for direct installation.

• Diagnostic Priority: Replacing the shuttle valve resolves the majority of "running to drain" faults before more expensive meter replacements are needed.

• Genuine Harvey Part: Guaranteed compatibility with H25 and H30 series manifolds.

Important Ordering Information

Lead Time: Please note that H25/H30 components are specialist parts. The G1898 carries a lead time of approximately 7–10 working days.
