HF20BB-SET - 20in Large Diameter Housing SET with Bracket and Spanner - Blue Bowl

High-Performance Water Filtration for Residential and Commercial Use

The HF20BB-Blue- 20in High Flow Jumbo Filter Housing Set is designed to deliver efficient and reliable water filtration for cold water lines. Featuring robust construction and compatibility with 20-inch Big Blue (BB) or Large Diameter cartridges, this filter housing is the ideal choice for high-flow applications.

Key Features

• High Flow Performance: Supports a maximum flow rate of approximately 97 l/m at 3 bar (42 psi) with an empty housing.
• Versatile Cartridge Compatibility: Accepts any 20” x 4.5” High Flow BB cartridges for custom filtration needs.
• Convenient Maintenance: Built-in air release mechanism for easy pressure relief during cartridge changes.
• Durable Construction: Made from high-quality polypropylene with a sturdy metal support bracket.
• Cold Water Use: Suitable for cold water lines only; protect from freezing conditions.

Specifications

• Maximum Flow (Empty Housing): ~97 l/m at 3 bar (42 psi)
• Minimum Pressure: ~2 Bar (28 psi)
• Maximum Pressure: 6.8 Bar (100 psi)
• Maximum Water Temperature: 20°C
• Ambient Temperature: 30°C
• Dimensions: Diameter: 182 mm | Height: 650 mm
• Inlet/Outlet: 1” BSP female
• Material: Polypropylene
• Colour: Black with Blue Bowl

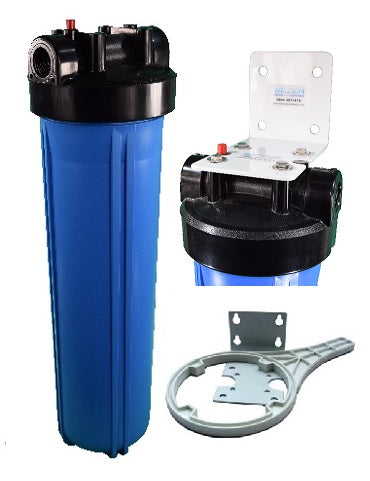

What's Included

• Spanner for easy cartridge replacement.
• Built-in pressure relief valve for smooth maintenance.
• Metal fixing bracket with screws for secure installation.

Installation Recommendations

For optimal performance and ease of maintenance:

• Install isolating valves on either side of the housing to control water flow during filter changes.
• Fit using compatible MI 1" x 22mm or 1" x 28mm couplers (not included).
• Ensure the unit is installed on cold water lines only and kept away from freezing temperatures.

Why Choose the HF20BB Filter Housing Set?

This filter housing is perfect for residential and light commercial setups requiring robust filtration solutions. Its compatibility with Big Blue cartridges offers flexibility to tailor water filtration to your needs, while its high-pressure resistance ensures reliable performance under varying conditions.

Order your HF20BB-BLUE-20in High Flow Jumbo Filter Housing Set today to experience durable and efficient water filtration!
