HF20BB-Triple - 20in Triple Large Diameter High Flow Housing with 1in BSP Ports

HF20BB-Triple – 20" Triple Large Diameter High Flow Housing with 1" BSP Ports

Heavy-Duty Triple Filter Housing for High-Capacity Water Filtration

The HF20BB-Triple is a 20-inch triple large-diameter (Big Blue-style) filter housing designed for high-flow, whole-house, commercial, and industrial water filtration.
With three full-size 20" × 4.5" filter chambers and 1" BSP ports, this robust system allows for multi-stage filtration, improving water quality and protecting downstream equipment such as UV disinfection units, reverse osmosis systems, and appliances.

Key Benefits

✅ High-Flow Performance – 1" BSP ports maintain excellent flow rates with minimal pressure loss.
✅ Triple-Stage Filtration – Allows sequential treatment (sediment, carbon, specialist filters) for superior water clarity and taste.
✅ Extended Filter Life – Large-diameter cartridges provide high dirt-holding capacity and longer service intervals.
✅ Durable Construction – Reinforced polypropylene housing and head assembly for long-term reliability.
✅ Easy Maintenance – Each housing includes a pressure-release button for safe cartridge replacement.

Recommended Filter Combinations

The triple housing is ideal for custom filtration setups. You can tailor the system by selecting cartridges suited to your water type and treatment goals:

1️⃣ Stage 1 – Sediment Filtration

Use a polypropylene or pleated sediment filter (1–20 micron) to remove:

• Sand, silt, and rust particles

• Visible dirt and suspended solids

• Protects downstream filters from clogging

💡 Common choice: 5-micron sediment filter for balanced flow and protection.

2️⃣ Stage 2 – Carbon Filtration

Use a Carbon Block or Granular Activated Carbon (GAC) filter to remove:

• Chlorine and chloramines

• Pesticides, herbicides, and organic compounds

• Unpleasant tastes and odours

💡 Ideal for improving taste and odour in mains or well water.

3️⃣ Stage 3 – Specialist Filtration (Optional)

Choose from a range of specialist cartridges depending on your water quality:

• Iron or manganese reduction filters for borehole water

• Scale inhibitor cartridges for hard water protection

• Activated carbon block (fine) for additional polishing

• KDF media for heavy metal reduction (lead, mercury, etc.)

💡 For UV pre-treatment, use a 5-micron sediment filter in the final stage to protect the quartz sleeve from fouling.

Typical Applications

• Whole-house water filtration

• Borehole or well water treatment

• Pre-filtration for UV disinfection systems

• Protection for reverse osmosis or softening systems

• Commercial kitchens, small industrial units, or farms

Technical Specifications

• Model: HF20BB-Triple

• Filter Size: 20" × 4.5" (Large Diameter)

• Number of Chambers: 3

• Inlet/Outlet: 1" BSP Female Ports

• Material: Reinforced polypropylene with pressure-relief vents

• Maximum Pressure: Up to 90 psi (6 bar)

• Temperature Range: 4 – 38 °C

• Mounting: Wall or floor (brackets optional)

What’s Included

• Triple 20" Large Diameter Filter Housing

• Pressure Release Buttons (on each head)

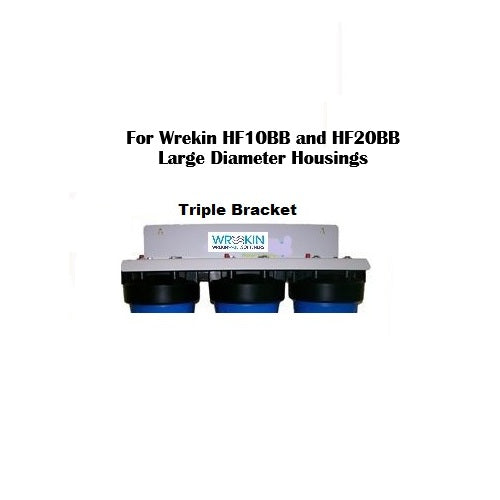

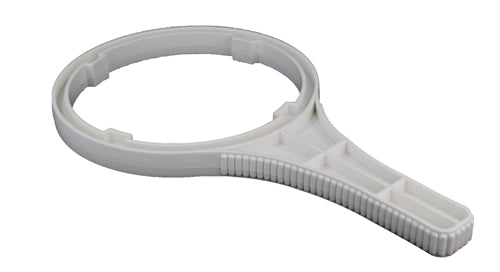

• Optional: Bracket & Spanner set

💡 Filter cartridges sold separately – available from our full range of sediment, carbon, and specialist filters.
