Hydra Big - Single Housing with 1.5" Ports - RAH Self Cleaning Filter System c/w Stainless Steel 90 Micron Filter RA6000012 15 m³/hr

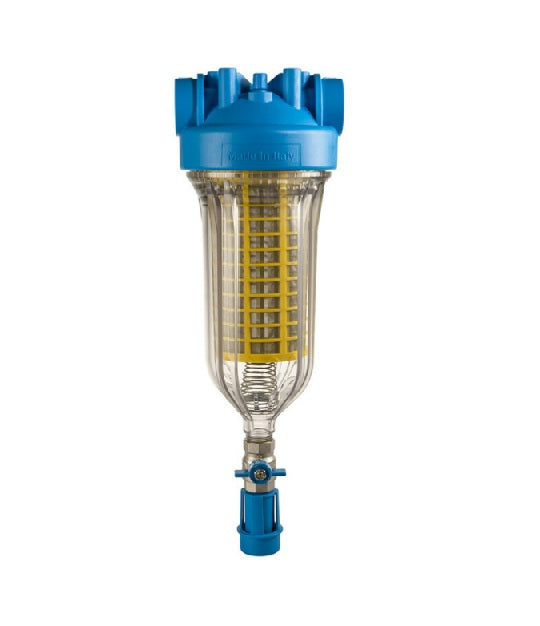

Atlas Hydra Big RAH Self-Cleaning Filter System – 1.5" Ports (RA6000012)

Includes Stainless Steel 90 Micron Filter Cartridge

The Atlas Hydra Big RAH is a self-cleaning, high-flow filtration system designed for large domestic, agricultural, and commercial water applications.
Featuring 1.5-inch BSP ports and a stainless steel 90-micron washable filter, the Hydra Big delivers continuous filtration up to 15 m³/h, providing an efficient, low-maintenance solution for sediment and particulate removal.

This advanced system incorporates Atlas Filtri’s counter-current backwash design, which allows the filter to clean itself with a simple twist of the discharge valve — flushing out trapped debris without disassembling the unit or replacing cartridges.

Key Benefits

✅ Self-Cleaning Operation – No need to remove the cartridge; the Hydra’s unique counter-current backwash system flushes sediment instantly.
✅ High-Flow Capacity – Handles up to 15 m³/hour, ideal for whole-building, irrigation, or commercial systems.
✅ Stainless Steel Cartridge (90 Micron) – Durable, corrosion-resistant filter element for long service life.
✅ Quick & Hygienic Drainage – Includes discharge valve with anti-backflow drain funnel (UNI EN 1717 compliant).
✅ Antimicrobial Seals – Grey flat gaskets incorporate silver-based antimicrobial protection.
✅ Complete Kit – Supplied with bracket, spanner, discharge valve kit, drain funnel, and hose holder.

How the Hydra Self-Cleaning System Works

The Hydra RAH operates using a reverse-flow cleaning system:
When the discharge valve is opened, the resulting pressure drop moves the cartridge downward, reversing the water flow through the filter from inside out.
This counter-current backwash action removes and discharges trapped particles through the drain, keeping the cartridge clean and the system operating at maximum efficiency.

Applications

• Whole-house and commercial water filtration

• Borehole or well water treatment

• Irrigation and agricultural systems

• Pre-filtration for UV disinfection, softeners, and reverse osmosis

• Industrial or process water systems

Technical Specifications

Included Accessories

• Stainless Steel Filter Cartridge (90 Micron)

• Wall Bracket

• Spanner

• Discharge Valve Kit

• Drain Funnel (Anti-Backflow)

• Hose Connection Holder
