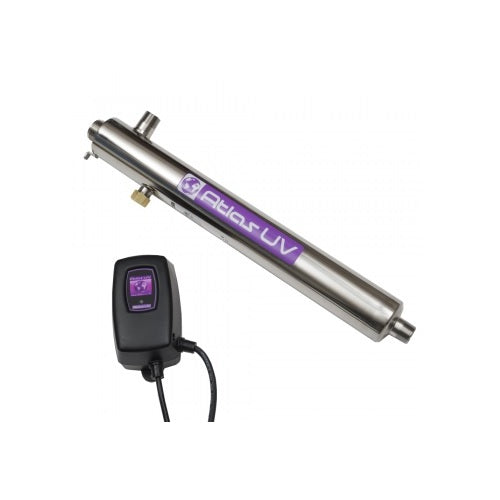

L22 - Atlas L22 UV System - 22.7lpm (1.4m3/hr) (Luminor LB5-063 and 062)

L22 - Atlas L22 UV System - 22.7lpm (1.4m3/hr) (Luminor LB5-063 and 062)

The Atlas L22 UV Unit is an efficient and reliable system for UV disinfection of drinking water in small to medium-sized applications. With a flow capacity of 22.7 L/min (1.4 m³/hr), this compact yet powerful unit ensures safe, clean water while maintaining durability and performance with its 304 stainless steel chamber. Equipped with an intuitive colour LCD controller and an upgradeable platform, the Atlas L22 offers flexibility to meet your evolving water treatment needs.

Why Choose the Atlas L22 UV Unit?

•  Efficient UV Disinfection
  Provides reliable UV treatment at a high dosage of 30 mJ/cm², easily neutralizing harmful microorganisms in water.
•  Durable 304 Stainless Steel Construction
  The axial flow polished chamber enhances UV performance while ensuring long-lasting durability.
•  User-Friendly Controller
  The intuitive colour LCD display provides clear maintenance alerts and performance feedback for hassle-free operation.
•  Upgradeable System
  Compatible with optional advanced accessories like a UV sensor, solenoid valve module, and more.
•  Easy Plug-and-Play Installation
  Designed for straightforward integration into your existing water systems.

Key Features

Powerful Disinfection System

• WRAS-approved for drinking water safety.
• Effectively neutralizes bacteria, viruses, and other microorganisms with a reliable UV dosage of 30 mJ/cm².

Advanced LCD Controller

• Displays remaining lamp life, low UV warnings, and QR codes for support and parts access.
• Simplifies maintenance with real-time feedback and alerts.

Scalable Upgrades

• Add modules such as a UV sensor, solenoid connection, or water quality monitoring system as your needs grow.

Simplified Maintenance

• Twist-and-turn lamp replacement design makes maintenance quick and easy.

Optional Expansion Modules

Take full advantage of the Infinite Expandability Port (IEP) to enhance the capabilities of your Atlas UV Unit with the following modules:

•  UV Sensor Module
  Monitors UV intensity at the critical wavelength of 254nm and displays the reading on the controller for precise performance tracking.
•  Solenoid Module
  Controls a remote solenoid valve (sold separately) to shut off water flow in case of lamp failure or low UV conditions.
•  Water Quality Monitor
  Provides remote alarm notifications and visual LED feedback for system status from up to 46 meters (150 feet) away.
•  Ultrasonic Flow Meter
  Automatically adjusts system power to save energy during periods of low or no flow, reducing water temperature and minimizing fouling risk.
•  TRV (Temperature Relief Valve)
  Releases a small amount of water to cool the system during extended no-flow conditions or critical temperature applications.
•  Cooling Fan (3.5in Chambers Only)
  Maintains ideal operating temperatures to ensure consistent performance without wasting water.
•  4-20mA Module
  Enables signal transfer to remote devices, such as data loggers or control systems, for real-time monitoring and advanced integration.
•  Remote Alarm Module
  Sends status updates to a remote dry-contact alarm, ensuring immediate notifications for peace of mind.
