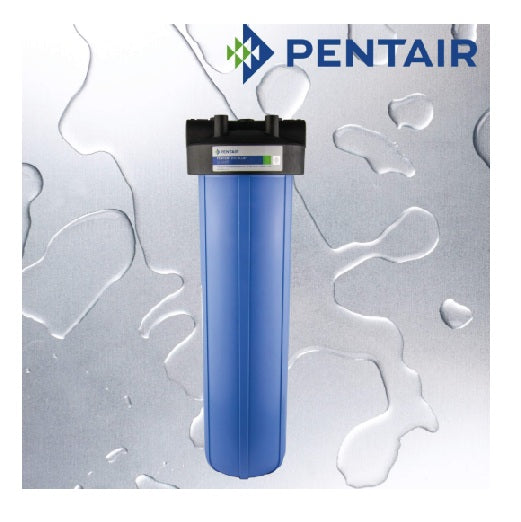

PENTAIR Big Blue 20" Housing 1 1/2" BSPF - W/PR 150253 (BB20BL11/2BTHFPPW/PR)

Pentair 20in Big Blue (Large Diameter) 20in Housing with Pressure Release and 11/2in BSPF Ports.

• Material: Polypropylene
• Configuration: 1 Cartridge (L: 20" x D: 4.5")
• Port Size: 1 1/2" BSPF
• Seal: EPDM
• Temperature Rating (°C): 37.8
• Max Pressure (bar):6.2
• Flow Rate (lpm): 90
• End-Cap Compatibility: AA / DOE

Accepting 20" length in large diameter (BB) cartridges, these extra-large housings allow for greater capacity, reducing both the number of vessels required for high flow rate applications and cartridge changeout frequency. Big Blue housings are compatible with a broad range of chemicals due to their all-polypropylene construction.

Technical Drawing
