PL50-20BB 4½in x 20in - 50 micron Jumbo High Efficiency Polyester Pleated Sediment Filters

PL50-20BB 4½in x 20in - 50 micron Jumbo High Efficiency Polyester Pleated Sediment Filters

PL50-20BB

In stock

£57.00 inc. VAT
£47.50 ex. VAT
£57.00 inc. VAT
£47.50 ex. VAT
Shipping calculated at checkout.
Shipping is calculated at checkout
tick in circle

All our orders are sent with tracked courier services

tick in circle

Free Customer Support by experts

Product Description

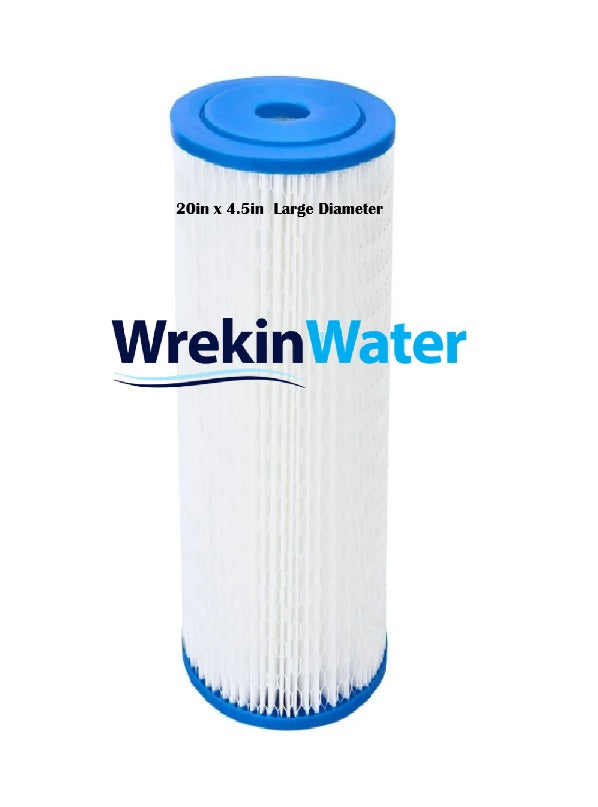

PL50-20BB 50 Micron 20" Jumbo Pleated Sediment Filter

The PL50-20BB is the ultimate heavy-duty filtration solution for environments requiring extreme flow rates and coarse sediment removal. With a 20-inch extended length and 4.5-inch large-diameter (BB) profile, this filter delivers maximum surface area for long-lasting performance. Rated at 50 microns, it acts as the primary "roughing" filter for whole-house systems, borehole extraction, and commercial applications, effectively trapping sand, grit, and large-scale debris while ensuring a massive flow potential of up to 90 lpm. Its durable construction, including a reinforced polypropylene core and leak-proof vinyl end-caps, ensures it stands up to the most demanding water conditions.

Why Choose the 20" Jumbo (BB) Format?

  • Massive Throughput: Rated for flow rates up to 90 lpm, making it suitable for large commercial or residential systems where pressure maintenance is critical.

  • Superior Coarse Filtration: The 50-micron rating is engineered to remove the most substantial sediment loads, preventing downstream blockages and equipment damage.

  • Reduced Maintenance: The 20-inch length provides double the media volume of 10-inch filters, drastically extending service intervals.

  • Bypass-Free Integrity: Vinyl plastisol end-caps ensure all water is forced through the pleat pack, guaranteeing consistent, reliable results.

3. Technical Specifications Table

Attribute Specification
Model PL50-20BB (20" Big Blue/Jumbo)
Dimensions 4.5" Diameter x 20" Length
Micron Rating 50 Micron
Efficiency 90%
Media Type Pleated Polyester
Max Flow Rate 90 lpm
Compatibility Standard 20" Big Blue (BB) Housings

Have You Ordered Before?

Existing/previous customers can find their previous orders with just a surname and a postcode. There’s no better way to find parts and replacements!

Get Started
PL50-20BB 4½in x 20in - 50 micron Jumbo High Efficiency Polyester Pleated Sediment Filters

PL50-20BB 4½in x 20in - 50 micron Jumbo High Efficiency Polyester Pleated Sediment Filters

£57.00 inc. VAT
£47.50 ex. VAT
£57.00 inc. VAT
£47.50 ex. VAT

Frequently asked questions

For full details on returns, refunds, eligibility, and timeframes, please refer to our complete Refund Policy here:

👉 Refund and Returns Policy

If you are unsure whether your item qualifies for return, please contact our team before sending anything back and we’ll be happy to help.

You should use this filter when your water source (like a new borehole or river) carries high levels of coarse sediment (sand/grit) and you need a high-volume flow (up to 90 lpm) for your entire building. It is the perfect first stage to protect pumps and expensive downstream filter stages.

Big Blue (Jumbo) filters offer significantly more surface area and lower flow resistance. In high-demand settings, a 20-inch Big Blue filter prevents the pressure drop that often occurs with smaller slimline filters, ensuring better performance in showers, taps, and industrial equipment.
