SE2-SS 30lpm - 3/4 Ports Same side Wrekin UV system with intelligent i-Controller with Pre-Filter Set
SE2-SS 30lpm - 3/4 Ports Same side Wrekin UV system with intelligent i-Controller with Pre-Filter Set
SKU:SE2-SS-3/4-HF10BB-PS5-10BB
In stock
Product Description
Product Description

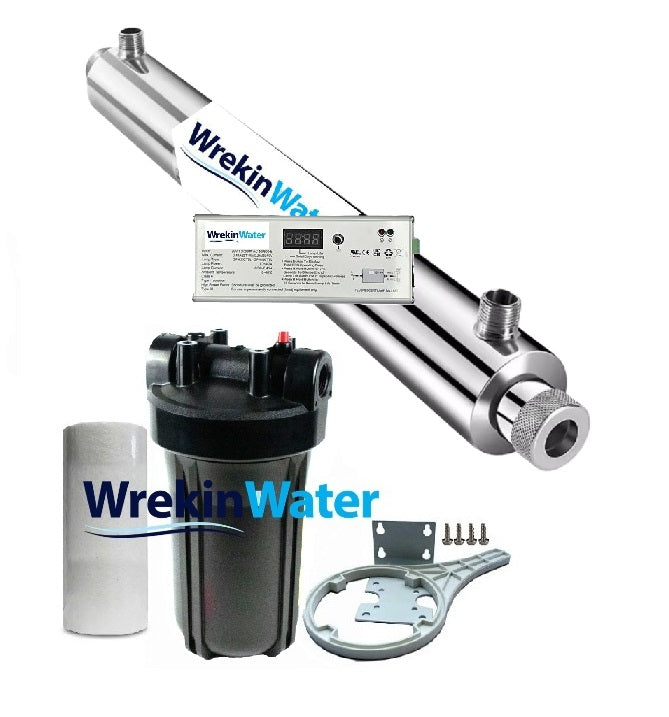

Wrekin SE2 UV System – 30 LPM with Intelligent i-Controller & HF10BB Pre-Filter Set (3/4″ Ports Same Side)
The Wrekin SE2-SS UV System is a compact, powerful UV water disinfection unit designed for homes, cottages, holiday lets, and small commercial sites using well, borehole, or private water supplies.
This complete kit includes the SE2-SS UV chamber, intelligent i-Controller, and a High-Flow HF10BB sediment pre-filter — providing everything required for safe, chemical-free water treatment.
With a 30 LPM flow rate, the SE2 is an ideal whole-house solution for small to medium-sized properties, protecting your family from harmful microorganisms such as E. coli, coliforms, bacteria, cysts and viruses.
⭐ Key Features & Benefits
✔ Intelligent i-Controller
-
Lamp life countdown
-
Audible alarms for lamp failure or end-of-life
-
Optional upgrade: EVC4 Solenoid Controller for automatic shut-off
→ Prevents untreated water from entering your system during a power or lamp failure.
✔ Complete Pre-Filter System Included
The kit includes the HF10BB Large Diameter Housing with:
-
1″ BSP female ports - Same Side
-
Metal mounting bracket
-
Spanner
-
Built-in pressure relief valve
-
PS5-10BB 5 Micron High-Flow Sediment Filter
This pre-filter protects the UV system by removing:
-
Sediment
-
Rust
-
Sand
-
Silt
-
Turbidity
Ensuring maximum UV effectiveness and longer lamp and sleeve lifespan.
🔧 Technical Specifications – Wrekin SE2 UV Unit
| Feature | Specification |
|---|---|
| Model | Wrekin SE2-SS |
| Flow Rate | 30 LPM |
| Lamp Power | 28W UV-C |
| Replacement Lamp | 550/T5L – 4 Pin (G550) |
| Replacement Quartz Sleeve | QJ23580 |
| Port Size | 3/4″ BSP Male |
| Port Orientation | Same Side |
| Total System Length | 595 mm |
| Controller | i-Controller with lamp countdown & alarms |
| Optional Safety | EVC4 Solenoid shut-off controller |
| System Material | Stainless steel chamber |
| Temperature Range | 5°C – 40°C |
🔧 HF10BB Filter Housing Specifications
| Feature | Specification |
|---|---|
| Max Flow | 76 LPM (empty housing) |
| Operating Pressure | 2 – 6.8 bar |
| Max Water Temp | 20°C |
| Housing Material | Polypropylene |
| Size | 10″ x 4.5″ (High-Flow) |
| Ports | 1″ BSP Female - SAME SIDE |
| Colour | Blue |
| Included | Bracket, spanner, pressure relief valve |
Flow rate decreases depending on the cartridge and inlet pressure.
Ideal Applications
-
Private water supplies
-
Boreholes & wells
-
Holiday rentals & cottages
-
Small commercial units
-
Whole-house UV water disinfection
-
Pre-filtration for reverse osmosis or softeners
Why Choose the Wrekin SE2-SS UV System?
-
Fully equipped UV + Pre-Filter Kit for safe installation
-
Chemical-free disinfection with no taste or odour
-
Intelligent control for maximum safety and peace of mind
-
Backed by Wrekin Water technical support and fast UK delivery
-
Compatible with our full range of lamps, quartz sleeves, filters & solenoid upgrades
Order the Wrekin SE2-SS UV System Today
Protect your home with a complete, intelligent, and high-performance UV disinfection and sediment filtration package — designed specifically for private water supplies.
