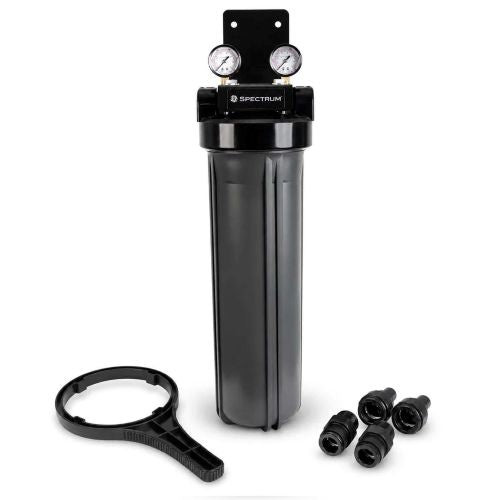

SFHS-1-20LD : SPECTRUM Aqualyze Single System Large Diameter 20" with Complete Adaptor Kit 110262

• • Material: Polypropylene
  • Configuration: 1 Cartridge (L: 20" x D: 4.5")
  • Port Size: 1"
  • Seal:Buna
  • Temperature Rating (°C): 42
  • Max Pressure (bar): 7.0
  • Flow Rate (lpm): 90
  • End-Cap Compatibility: AA / DOE / CG
  • Sealant Compatibility: See Overview Below

  This housing is only compatible with Large Diameter Cartridges.

Sealant Compatibility: For SFH-LD, only use ABS-compatible O-rings, PTFE thread tape, silicone-based lubricants, and approved non-solvent sealants. Do not use plasticiser-containing compounds, solvent-based adhesives, or incompatible chemicals, as these may cause stress cracking and premature failure of ABS components.

These smart systems have been conveniently pre-assembled for easy and quick installation. Costing less than the sum of their individual components combined. Coming complete with inlet and outlet gauges to monitor and maximise cartridge life, a spanner to assist with sump removal when performing maintenance and cartridge replacement. 1" BSP port sizes compatible with the most common pipework, the extensive combinations in this range provide endless options for applications and flow rates.

Filtration systems are tailored to suit individual applications dependant on the level of filtration required. Single housings provide an effective one stage process, used to target specific contaminants for example, bulk solids, sediment or organics. Two-stage systems are implemented when an expensive secondary filter, such as a fine filtration or water treatment cartridge, benefits from prefiltration, prolonging service life. If applications demand a full filtration cascade, a three-stage system is recommended, which delivers a spatial and economic solution.
