Size 2 (3 x Size 2 Bags) PBH-SPC-3-2-4F-GP-ML SPECTRUM INOX Premier Bag Housing – 4" DN100
Size 2 (3 x Size 2 Bags) PBH-SPC-3-2-4F-GP-ML SPECTRUM INOX Premier Bag Housing – 4" DN100
SKU:102772 PBH-SPC-3-2-4F-GP-ML
Share
For high-flow and bulk solid removal applications, the SPECTRUM INOX Premier Bag Housing offers unparalleled efficiency and durability. Designed for demanding industrial and commercial filtration needs, this housing accommodates three Size 2 bags and features a robust DN100 port size, making it a reliable choice for systems requiring high dirt-loading capacity and extended operation periods.
Key Features
- High Flow Rate: Handles flows up to 600 LPM per bag, making it ideal for high-capacity operations.
- Robust Construction: Made from 316L stainless steel with poly-coated finishes for enhanced durability and corrosion resistance.
- Wide Compatibility: Accommodates three Size 2 bags for maximum filtration efficiency and dirt retention.
- Ease of Use: Features ergonomic mounting legs, pressure gauge ports, and V-band clamps for simple installation and maintenance.
- Regulatory Compliance: Certified to meet FDA, DWI, and PED standards, ensuring safe use in a variety of applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Bag Size | Size 2 (3 bags) |
| Flow Rate | Up to 1800 LPM (600 LPM per bag) |
| Material | 316L Stainless Steel body and lid, Buna-N O-rings |
| Pressure Rating | 10 bar |
| Temperature Rating | Up to 120°C |
| Port Size | DN100 |
| Construction | Welded with poly-coated finish for enhanced durability |
Applications
The SPECTRUM INOX Premier Bag Housing is versatile and suited for various industries, including:
- Food and Beverage: Ensures safe and clean processing for liquids requiring stringent hygiene standards.
- Industrial Processing: Handles high-dirt-load applications for manufacturing and production.
- Water Treatment: Efficiently removes sediment, debris, and contaminants in high-flow systems.
- Chemical Processing: Built to resist chemical corrosion while ensuring filtration integrity.

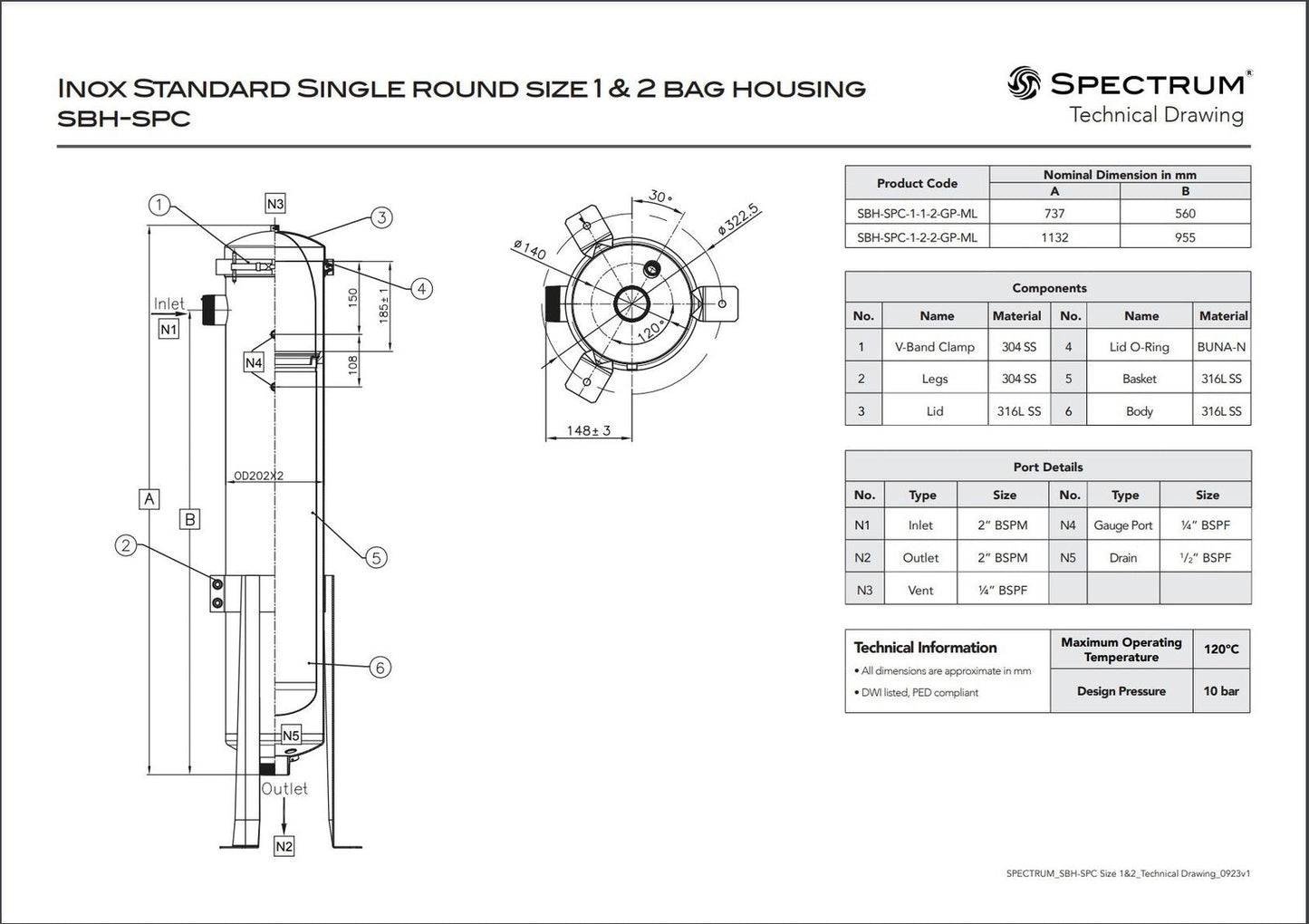

Construction Details
- Body and Lid: Manufactured from 316L stainless steel, providing excellent corrosion resistance and structural integrity.
- Legs: Sturdy 304 stainless steel legs ensure stability during operation.
- Sealing Mechanism: V-band clamps secure the housing for leak-proof performance.
- O-rings: Made from Buna-N for reliable sealing under pressure.
Certifications
- FDA Compliant Materials: Safe for food-grade applications.
- DWI Approved: Suitable for potable water filtration.
- PED Compliance: Meets Article 4, Paragraph 3, Group 2 Liquids standards for pressure equipment.
Benefits of the SPECTRUM INOX Premier Bag Housing
High Efficiency
With the capacity to hold three Size 2 bags, this housing allows for extended filtration cycles, reducing the frequency of maintenance and downtime.
Durable Design
The 316L stainless steel construction is built to withstand harsh conditions, ensuring a long service life even in demanding environments.
User-Friendly Features
The inclusion of mounting legs, pressure gauges, and easy-access clamps simplifies the installation and maintenance process.
Maintenance and Operation
- Bag Replacement: Open the V-band clamp to access the housing and replace used bags quickly and easily.
- Sealing Integrity: Inspect Buna-N O-rings during maintenance to ensure proper sealing and prevent leaks.
- Cleaning: The poly-coated finish and stainless steel construction make cleaning straightforward and efficient.
Ordering Information
The SPECTRUM INOX Premier Bag Housing is available with various configurations to suit your specific requirements:
| Code | Bags | Port Size | Gauge Ports | Mounting Legs |
|---|---|---|---|---|
| PBH-SPC-3-2-4-GP-DN100 | 3 | DN100 | Yes | Yes |
Why Choose SPECTRUM INOX Premier Bag Housing?
When it comes to reliability, efficiency, and regulatory compliance, the SPECTRUM INOX Premier Bag Housing sets the standard. Its robust construction, high flow capacity, and easy maintenance features make it an excellent investment for any operation requiring high-performance filtration.
Order Now to experience the best in industrial and commercial liquid filtration.
