Product Description

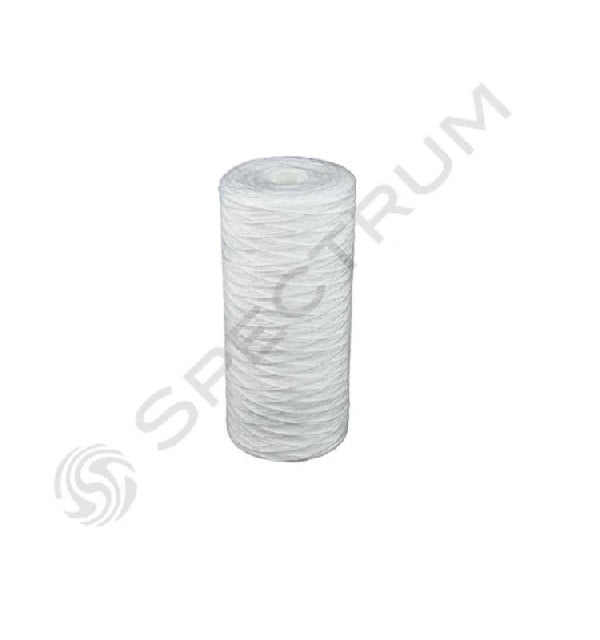

SPECTRUM SWP 10LD: 10-inch Large Diameter String Wound Filter

The SPECTRUM SWP 10LD is a heavy-duty, large-diameter sediment filter designed for high-flow applications where frequent filter changes are not an option. By utilizing a 4.5-inch "Jumbo" diameter, this cartridge provides significantly more surface area than standard slimline filters, allowing for much higher flow rates and a massively increased dirt-holding capacity. Featuring a computer-controlled, graded-density wound pattern, the SWP 10LD captures coarse sediment on the exterior and finer particles within the media, providing a reliable, long-lasting barrier for your most critical pumps, valves, and downstream filtration systems.

Why Choose the SWP 10LD Large Diameter?

  • Reduced Maintenance Frequency: The large diameter design provides the surface area required to handle heavy sediment loads, meaning fewer change-outs and lower labor costs compared to standard 2.5" filters.

  • High-Flow Performance: Engineered to facilitate higher flow rates with minimal pressure drop, making it ideal for whole-house, commercial, and industrial supply lines.

  • Graded Density "Depth" Loading: Traps debris throughout the entire thickness of the filter media, ensuring that the filter works to its full potential rather than just "blinding" on the surface.

  • Industrial-Grade Construction: 100% polypropylene media and core offer excellent chemical compatibility and temperature resistance up to 65°C.

3. Technical Specifications Table

Feature Specification
Model SPECTRUM SWP 10LD (Large Diameter)
Dimensions 10" Length x 4.5" Diameter (Jumbo/Big Blue)
Media Type Polypropylene (Wound)
Core Material Polypropylene (Inert)
Micron Range 0.5 – 150 µm
Max Temperature 65°C
Primary Use High-flow sediment/silt/sand removal

Product Documents

tick in circle

All our orders are sent with tracked courier services

tick in circle

Free Customer Support by experts

SWP - 10LD - 10" Large Diameter Spectrum String Wound Polypropylene Water Filter Range

SWP - 10LD - 10" Large Diameter Spectrum String Wound Polypropylene Water Filter Range

£46.80 Inc. VAT £39.00 Ex. VAT
£46.80 Inc. VAT £39.00 Ex. VAT

Frequently asked questions

For full details on returns, refunds, eligibility, and timeframes, please refer to our complete Refund Policy here:

👉 Refund and Returns Policy

If you are unsure whether your item qualifies for return, please contact our team before sending anything back and we’ll be happy to help.

Yes. The term "Large Diameter" (LD) or "Jumbo" is synonymous with the standard industry "Big Blue" filter housings (10" x 4.5"). This filter is designed as a direct replacement for all standard 10-inch Big Blue housings.

You should choose the 10LD if you require higher flow rates without pressure loss, or if you are tired of changing standard slimline filters every few weeks. The LD provides significantly more media volume, meaning it holds more dirt and lasts longer before clogging.
