Wrekin SE3 UV System – 45 LPM with Intelligent i-Controller (1″ Ports)
The Wrekin SE3 UV System is a high-performance ultraviolet water disinfection unit designed to provide safe, bacteria-free water for domestic and commercial applications.
Built with durable stainless steel and advanced control features, it delivers reliable, chemical-free water sterilisation at flow rates up to 45 litres per minute (LPM).
Powered by a 40W UV-C lamp, the SE3 offers consistent protection against harmful microorganisms such as E. coli, coliforms, and cryptosporidium, making it ideal for private water supplies, boreholes, and wells.
Key Features & Benefits
-
High Flow Rate: Treats up to 45 LPM (suitable for whole-house or small commercial setups).
-
Intelligent i-Controller: Displays lamp life countdown, with audible alarms for lamp failure or end-of-life.
-
Enhanced Safety: Compatible with the EVC4 Solenoid Controller, which automatically shuts off water during power or lamp failure to prevent untreated water from passing through.
-
Efficient Disinfection: 40W UV-C lamp ensures effective microbial destruction without chemicals.
-
Durable Construction: Precision-engineered stainless steel body (AISI 304) ensures corrosion resistance and long-term performance.
-
Low Maintenance: Simple annual lamp replacement and occasional quartz sleeve cleaning.
-
Compact Design: 910 mm total length with opposite-side ports for flexible installation.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Wrekin SE3 UV System |
| Flow Rate | 45 LPM |
| Lamp Power | 40W UV-C |
| Lamp Type | G843 – 4 Pin Replacement |
| Quartz Sleeve | QJ23890 Replacement |
| Chamber Material | Stainless Steel (AISI 304) |
| Port Size | 1″ BSP Male |
| Port Orientation | Opposite sides |
| System Length | 910 mm |

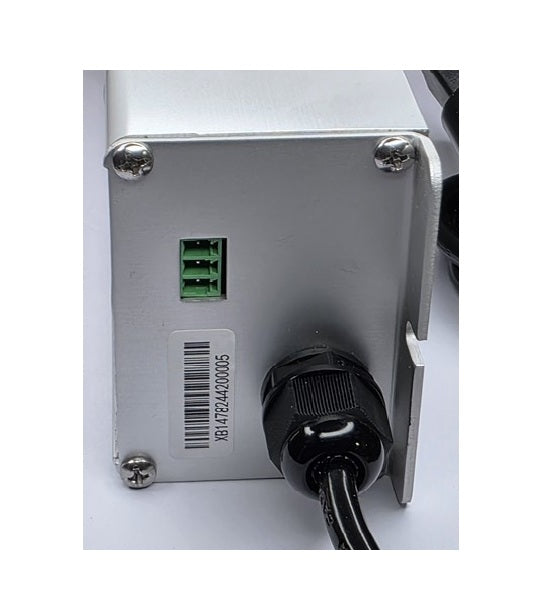

| Power Supply Unit (PSU) | i-Controller with lamp countdown & audible alarms |
| Optional Accessory | EVC4 Solenoid Controller (auto shut-off) |
| Operating Pressure | Up to 9 bar |
| Water Temperature | 5°C – 40°C |
| Power Rating | 230V / 40W |
Applications
-
Whole-house UV water sterilisation
-
Private water supplies – wells, boreholes, and springs
-
Commercial and agricultural water systems
-
Pre-filtration for reverse osmosis or softening systems
Why Choose the Wrekin SE3 UV System?
The Wrekin SE3 UV provides powerful, chemical-free disinfection with smart control functionality.
With its built-in i-Controller, audible safety alarms, and optional solenoid shut-off, it offers complete peace of mind that your water remains clean and safe at all times.
At Wrekin Water, we supply complete UV systems, replacement lamps, quartz sleeves, and safety modules — all backed by expert advice and fast UK delivery.
📦 Order your Wrekin SE3 UV System today and protect your home or business with a smart, high-performance water disinfection solution from Wrekin Water.
