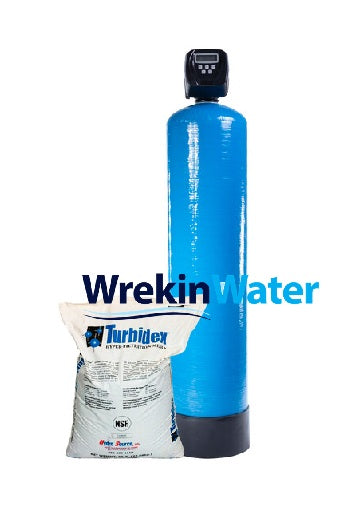

14x65 Turbidex Hyper-Filtration System | Clack WS1 CI Valve
The 14x65 Turbidex Sediment Filter is a high-performance solution for Total Suspended Solids (TSS) reduction, specifically engineered to outperform traditional sand filters by a factor of ten. By utilizing Turbidex, a unique natural clinoptilolite ore, this system leverages a highly angular, microporous structure with a surface area 100 times greater than standard filter sand.
While conventional sand filters struggle to capture particles below 20–40 microns, the 14x65 Turbidex system consistently filters down to 3–5 microns. This results in "crystal clear" water and provides critical protection for UV sterilizers, Reverse Osmosis membranes, and high-end plumbing fixtures that are easily damaged by fine sediment.
Why Turbidex Outperforms Traditional Sand
Hyper-Fine Filtration: Targets suspended solids down to 5 microns or less, providing a level of clarity that standard sand or multi-media filters cannot achieve.
Optimized Flow Rates: The hydrophilic nature of Turbidex allows for higher service flow rates, ensuring your property maintains strong water pressure even during peak demand.
Reduced Backwash Frequency: The high-porosity ore prevents the rapid "head loss" (pressure drop) common in sand filters, significantly extending the time between maintenance cycles.
High Loading Capacity: The 14" vessel provides a massive internal surface area to trap sediment, allowing for a smaller installation footprint than bulky traditional alternatives.
The Clack WS1 CI Advantage
This system is fitted with the Clack WS1 CI (Commercial/Industrial) control valve. The "CI" series is preferred over basic timer valves for its versatility:
Precision Tuning: Full control over backwash and rinse durations to suit the specific turbidity levels of your water source.
Advanced Reliability: The WS1 CI is built for heavy-duty use and is the industry standard for long-term durability and ease of service.
Customizable Cycles: Allows for "Days Override" settings, ensuring the bed is refreshed even during periods of low water usage.
Technical Specifications
Feature
Details
Vessel Size
14" x 65"
Valve Type
Clack WS1 CI (Fully Adjustable)
Filtration Level
3–5 Microns
Media Type
High-Purity Natural Clinoptilolite (Turbidex)
Backwash Style
Automatic Time-Clock (Fully Customizable)
Inlet/Outlet Size
1" (Standard)
Private Water Supply Assessment
To ensure the 14x65 Turbidex system is the optimal fit for your borehole, spring, or well, Wrekin Water recommends a free technical review. Please provide our team with:
A recent Water Test Report (Chemical and Bacterial).
Source Type (e.g., Spring, Well, Borehole, or Stream).
Property Size (Number of bathrooms and residents).
Usage Pattern (Constant residence or holiday let).
