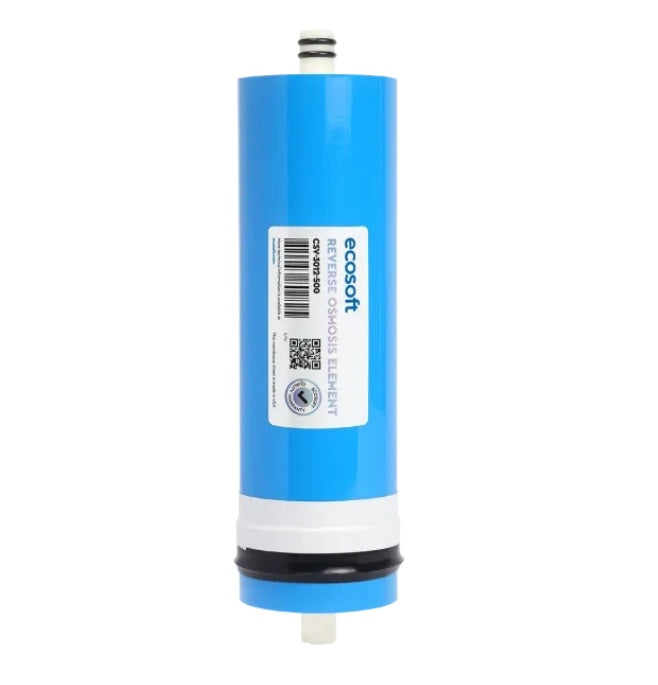

Ecosoft CSV-3012-500 Reverse Osmosis Membrane Element

High-Capacity Water Purification with Specific Compatibility

The Ecosoft 3012-500 Reverse Osmosis Membrane Element is a highly efficient solution for water purification, offering a robust capacity of 500 gallons per day (GPD). Its precise size of 3" diameter x 12" ensures compatibility exclusively with reverse osmosis systems designed to accommodate this specification. This membrane delivers reliable removal of impurities, providing clean, safe water for residential and commercial purposes.

Key Features

• Delivers up to 500 GPD for high-demand water purification.
• Compact dimensions of 3" diameter x 12", tailored for specific RO systems.
• Effectively removes sediment, dissolved solids, and heavy metals.
• Eliminates bacteria, viruses, and other harmful contaminants.
• Durable construction ensures long-lasting filtration performance.

Compatibility and Benefits

• Exclusively fits reverse osmosis systems that support 3" x 12" membrane elements.
• Enhances water quality for drinking, cooking, and household use.
• Reduces reliance on bottled water for a more eco-friendly lifestyle.
• Improves appliance performance by preventing scale build-up.
• Provides peace of mind with fresh, contaminant-free water.

Engineered for Reliability

Designed to meet rigorous industry standards, the Ecosoft CSV-3012-500 membrane delivers top-tier performance and consistent filtration quality, ensuring optimal water purification results every time.

• Replacement interval: every 24 months
• Suitable for reverse osmosis systems
• High-performance membrane; removes up to 99.8% of impurities
• Ensures high-quality water purification
• Provides health-conscious hydration

Specifications

Membrane type — spiral-wound element with polyamide thin-film composite

• Membrane element type: 500 GPD
• Permeate volume: 78 L/hour
• Stabilized salt rejection: 96.0 %
• Applied pressure: 4.8 bar
• Purpose: domestic/direct flow RO filters

Operating parameters

• Maximum operating water temperature: 45 °C
• Maximum operating pressure: 4.8 bar
• Maximum element pressure drop: 1.0 bar
• pH range, continuous operation: 3-11
• Maximum Feed Silt Density Index (SDI): 5
• Free chlorine tolerance: < 0.1
