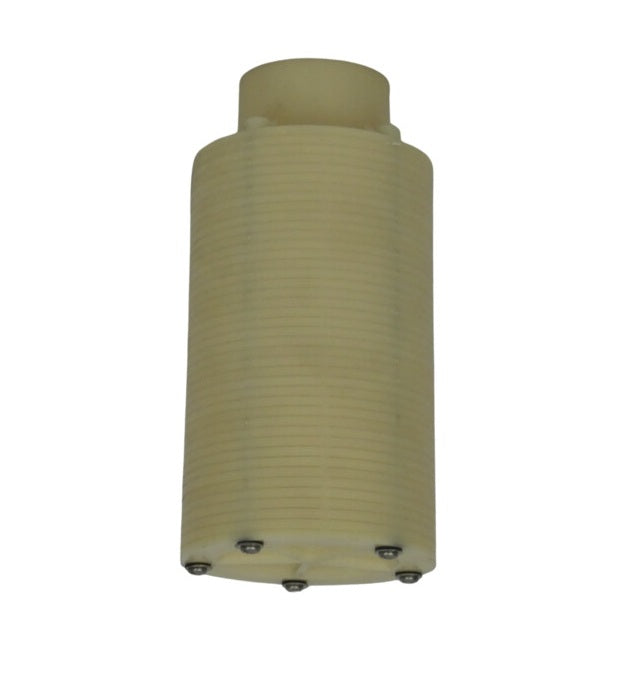

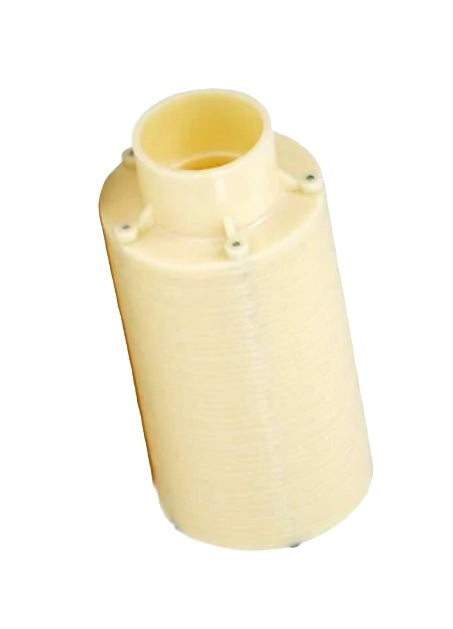

50mm - Clack 970 Bottom Stack Distributor 50mm D1197-09

The D1197-09 is the 50mm bottom stack distributor used with Clack 970 series and WS1 control valves, forming the central riser tube that carries treated water up through the resin bed to the valve during service, and directs backwash flow down through the bed in the other direction. Fitted with a strainer basket at its base to hold resin back, it's a structural part of the vessel rebuild rather than a small consumable. This is the part to fit when rebuilding a Clack-valved softener or filter vessel, stocked by WrekinWater.

Technical specifications

Symptoms that mean you need this part

• The distributor stack is cracked or split, allowing resin or media to bypass into the service water
• Fine grit or media dust turning up at taps downstream of the softener or filter
• The riser tube has worked loose from the valve base during a vessel strip-down
• A replacement vessel needs a stack of the correct length and diameter to seal properly against the valve

Why it fails / why it matters

The bottom stack distributor is the single tube that every drop of water passes through on its way into or out of the resin bed, sealed to the control valve at the top and fitted with a strainer basket at the base to hold media back during both service and backwash flow. Because it sits fully submerged in the vessel and carries the full flow and pressure of the system, a crack or split anywhere along its length lets resin or media escape past the strainer and into the pipework, and the only fix is to replace the stack when the vessel is next opened up.

Why buy this from WrekinWater

WrekinWater stocks genuine-spec Clack, Pentair Fleck, Autotrol and Kinetico distributor components for vessel rebuilds, built on more than 15 years trading from Bettisfield, Shropshire (UK Company No. 11000488) and over 50,000 customers served. With stock ready to ship and an Excellent Trustpilot rating, getting the correct diameter and length stack for your vessel is straightforward rather than guesswork.

How to fit it

1. Isolate the vessel, shut off the mains supply and remove the control valve head from the top of the vessel
2. Empty the vessel of resin or media, noting the media type and bed depth for refilling later
3. Withdraw the old bottom stack distributor and strainer basket, checking the base of the vessel for damage
4. Fit the new D1197-09 stack, confirming the strainer basket seats correctly at the base and the top locates squarely in the valve base thread
5. Refill the vessel with the correct grade and depth of resin or media around the new stack
6. Refit the control valve head, restore the water supply, and run a full backwash and rinse cycle to check for grit at the drain before returning to service
