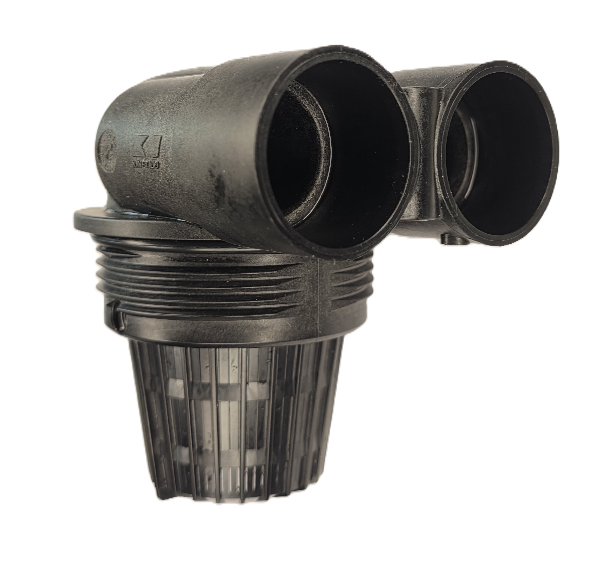

9251- Top Upper Distributor for Main Valve and Remote Base

The 9251 is the upper distributor fitted inside Fleck-type duplex control valves and their remote bases, directing water correctly through the piston chamber during service and regeneration. It's a common part used both in the main control valve and in the remote base on twin-tank continuous-supply softener installations, which is why one part number covers both positions. WrekinWater stocks this distributor for engineers and installers servicing alternating twin-tank systems where downtime isn't an option.

Technical specifications

Symptoms that mean you need this part

• Water bypasses correctly to one tank but the second tank never comes online during alternation
• Regeneration on the remote/slave tank stalls or doesn't complete in sequence
• Visible cracking, warping or wear on the distributor when the valve or remote base is stripped down
• Flow between ports is uneven or the piston assembly binds where the distributor seats

Why it fails / why it matters

In a duplex control system one tank stays in service while the other regenerates, and the sequencing between the two depends on water being routed precisely through the piston chamber in both the main valve and the remote base. The upper distributor sits at the top of that chamber and channels flow to the correct ports as the piston moves; because it's exposed to constant flow and mineral-laden water, the plastic can wear, distort or crack over years of cycling, which throws the alternation sequence out and leaves one tank effectively offline. Replacing the distributor restores correct flow routing without needing to replace the whole valve or remote base.

Why buy this from WrekinWater

WrekinWater has been supplying parts for Fleck, Autotrol, Clack and Kinetico control systems to installers and engineers for over 15 years from its Bettisfield, Shropshire base, and understands that a twin-tank system with one tank down is only half a softener. With more than 50,000 customers served and an Excellent rating on Trustpilot, WrekinWater is set up to get parts like the 9251 out quickly so continuous-supply systems stay fully operational.

How to fit it

1. Isolate the softener at the bypass valve and depressurise the system before opening the valve body or remote base
2. Remove the top cover or piston retaining components to access the upper distributor
3. Withdraw the old distributor and inspect the piston bore for scoring, scale build-up or debris
4. Clean the bore and seating area before fitting the replacement 9251 distributor
5. Reassemble the piston and cover, checking the distributor seats squarely with no play
6. Restore the water supply, run the system through a manual regeneration cycle and confirm both tanks alternate and complete their cycles correctly
