L8 - Atlas L8 UV System - 8lpm UV System 1/2" Ports

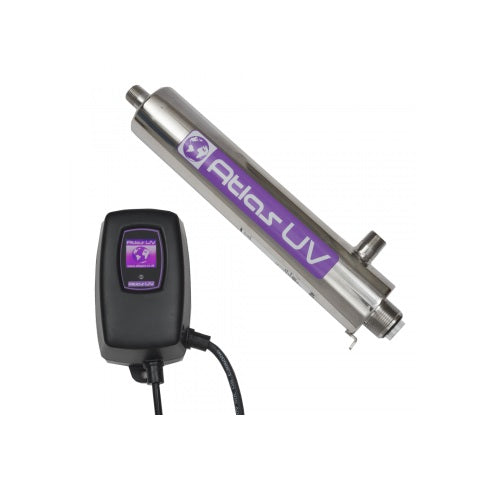

Atlas L8 UV Unit – Compact and Reliable UV Disinfection for Domestic Use

The Atlas L8 UV Unit is the perfect solution for ensuring safe and clean drinking water in your home. Engineered for efficiency, this unit treats flows of up to 7.6 L/min (0.5 m³/hr) and guarantees a UV dosage of 30 mJ/cm² at the end of its lamp's 1-year lifespan. With its thoughtful design and advanced features, it's a dependable addition to your water treatment system.

Key Features

•  Perfect for Domestic Drinking Water Treatment
  Ideal for homes, this WRAS-approved UV unit delivers reliable disinfection of drinking water, ensuring that your water supply meets safety standards.
•  Polished Stainless Steel Chamber
  Built with 304 stainless steel, the pressure-rated chamber ensures durability and corrosion resistance while enhancing UV efficiency with its polished axial flow design.
•  User-Friendly Colour LCD Display
  Stay in control with the intuitive colour LCD interface, featuring a countdown timer, lamp life reminders, and operational feedback messages for easy monitoring and maintenance.
•  Simple Plug-and-Play Installation
  The Atlas L8 UV unit is designed for hassle-free setup. Its compact reactor and controller dimensions make it easy to integrate into your existing water system.
•  Easy Lamp Change
  The innovative twist-and-turn design allows for lamp changes without interrupting water flow or requiring additional tools.
•  Versatile Power Compatibility
  Operates seamlessly with multi-voltage inputs (90-265V, 50-60Hz), making it suitable for mains power or a true sine wave generator.
•  Upgradeable Design
  Future-proof your system with upgrade options such as UV sensors, solenoid modules, and remote alarms for added functionality as your needs evolve.

Optional Expansion Modules

Take full advantage of the Infinite Expandability Port (IEP) to enhance the capabilities of your Atlas UV Unit with the following modules:

•  UV Sensor Module
  Monitors UV intensity at the critical wavelength of 254nm and displays the reading on the controller for precise performance tracking.
•  Solenoid Module
  Controls a remote solenoid valve (sold separately) to shut off water flow in case of lamp failure or low UV conditions.
•  Water Quality Monitor
  Provides remote alarm notifications and visual LED feedback for system status from up to 46 meters (150 feet) away.
•  Ultrasonic Flow Meter
  Automatically adjusts system power to save energy during periods of low or no flow, reducing water temperature and minimizing fouling risk.
•  TRV (Temperature Relief Valve)
  Releases a small amount of water to cool the system during extended no-flow conditions or critical temperature applications.
•  Cooling Fan
  Maintains ideal operating temperatures to ensure consistent performance without wasting water.
•  4-20mA Module
  Enables signal transfer to remote devices, such as data loggers or control systems, for real-time monitoring and advanced integration.
•  Remote Alarm Module
  Sends status updates to a remote dry-contact alarm, ensuring immediate notifications for peace of mind.
