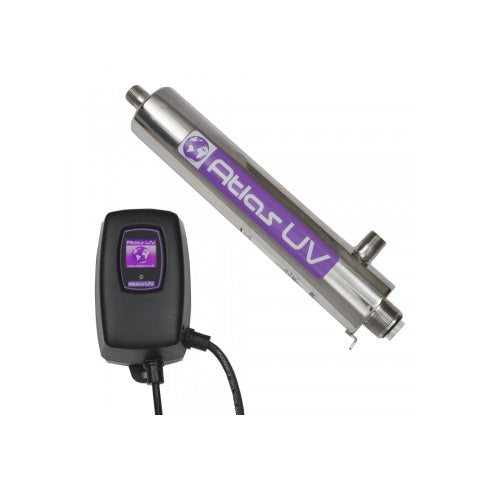

L8-12v - Atlas L8 12v UV System

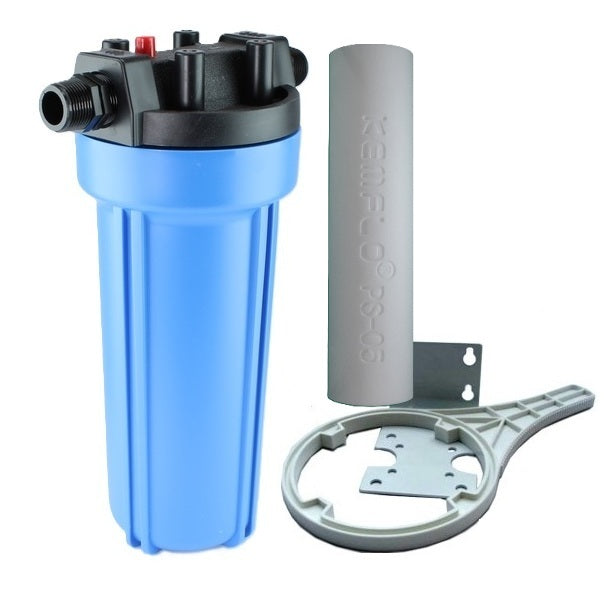

The Atlas L8 12v is a low-voltage UV disinfection system designed for off-grid installations, treating water drawn from a private source such as a borehole, spring or storage tank. WrekinWater offers it as a UV-only unit or paired with an HD10 pre-filter set for sites without an existing 5 micron pre-filter. Running on 12v, it suits caravans, cabins, and rural properties without a reliable mains supply.

Signs you need this part

• You're drawing drinking water from a private borehole, spring, or storage tank with no mains connection.
• Your site has no continuous mains electricity, ruling out a standard 240v UV unit.
• You want reassurance that a private supply is being disinfected before it's used for drinking.
• You don't yet have a 5 micron pre-filter in place ahead of the UV stage.

UV disinfection works by exposing water to UV light as it passes through the chamber, inactivating bacteria and other microorganisms without chemicals. UV light can only work on water it can actually reach, so any turbidity or particulate matter shields organisms from it and reduces disinfection reliability, which is why a 5 micron pre-filter ahead of the L8 12v is essential rather than optional. Running a private supply without adequate pre-filtration leaves the disinfection outcome down to chance.

WrekinWater is a family-run business in Bettisfield, Shropshire that has supplied water treatment equipment to more than 50,000 customers over 15 years, and is rated Excellent on Trustpilot. We stock Atlas systems alongside our own range, so you can buy the UV unit and the right pre-filter together in one order.

How to fit it

1. Isolate the water supply and drain down the pipework where the unit will be fitted.
2. Fit a 5 micron pre-filter housing upstream of the UV unit if one isn't already in place.
3. Mount the L8 12v UV chamber in-line, following the flow direction marked on the unit.
4. Connect the 12v power supply, keeping all electrical connections clear of any water spray.
5. Restore the water supply and check every joint for leaks before switching on.
6. Run the system to drain briefly once powered up, then confirm normal operation.
