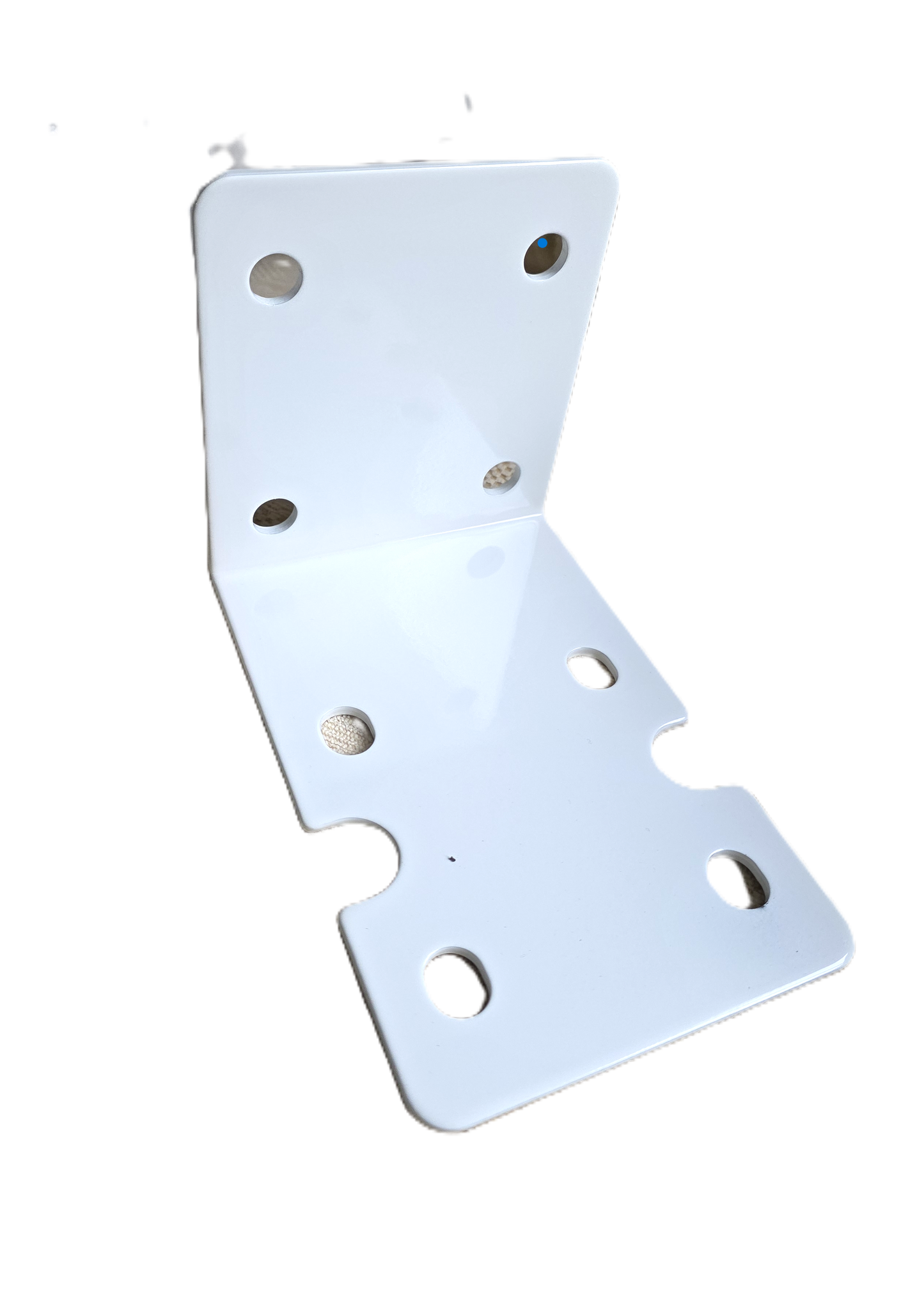

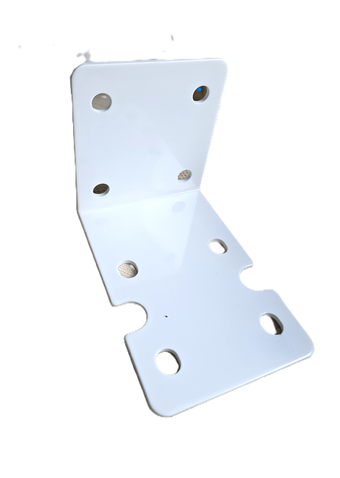

BRIL-1B - (no screws) Bracket, HF10BB, HF20BB Wrekin Housings , Pentair & Spectrum Large Diameter

The BRIL-1B is a wall-mounting bracket sized for large diameter, Big Blue-style housings, including Wrekin's own HF10BB and HF20BB, PBH bag housings, and equivalent Pentair and Spectrum large diameter models. WrekinWater supplies it as a genuine support fitting for housings that would otherwise rest unsupported on their pipework. As the title notes, mounting screws aren't included, so you can choose fixings to suit your own wall.

Why you might need this

• You're wall-mounting a new large diameter Big Blue-style housing.
• You're replacing a cracked or missing original bracket.
• Your housing is currently resting unsupported on its pipework.
• You're upgrading from a smaller housing and need a bracket sized for the larger diameter.

Large diameter housings like the HF10BB and HF20BB are substantial once full of water and cartridge, and that weight needs somewhere to go other than the inlet and outlet pipework. Left unsupported, the connections take a constant strain that can eventually work a joint loose or crack a fitting. A properly fitted bracket carries that weight instead, so the pipework only has to manage the flow, not hold the housing up.

WrekinWater is a family run business based in Bettisfield, Shropshire, that's served more than 50,000 customers over 15 years and is rated "Excellent" on Trustpilot. As the makers of the HF10BB and HF20BB housings this bracket is designed around, we stock the genuine fitting rather than a generic substitute.

How to fit it

1. Choose a wall position that leaves clearance below the housing for cartridge changes.
2. Mark and drill fixing holes to suit the bracket and your wall type.
3. Fix the bracket to the wall using screws suited to the surface (not supplied).
4. Rest the housing into the bracket and check it sits level.
5. Secure the housing with a retaining strap or screw where the bracket allows.
6. Confirm the housing isn't pulling on the inlet or outlet pipework once seated.
