CR100 - Evolve Simplex 1" Valve - Crystal-Right Iron and Manganese

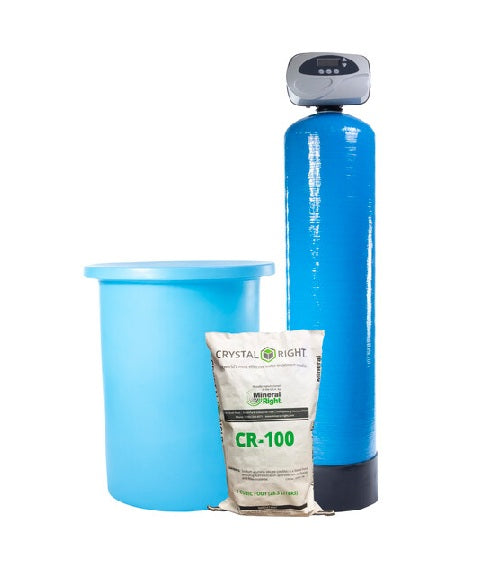

Evolve Water Filtration System with Crystal Right CR100 Media

The Evolve filtration system offers an intelligent, all-in-one solution for homes or properties affected by problem water. Built with a self-sanitising Evolve valve, the system features a built-in chlorine generator that disinfects the media during each regeneration cycle, preventing bacterial slime and foul odours.

The system uses Crystal Right CR100, a high-performance synthetic silica zeolite designed to treat:

• Iron

• Manganese

• Ammonia

• Hardness

• And also raise low pH levels (minimum pH: 6)

This makes it a perfect choice for acidic, mineral-laden water supplies, including private wells and boreholes.

✅ Key Features

• Crystal Right CR100 Media – Reduces iron, manganese, ammonia & hardness in a single step

• Corrects Low pH – Ideal for slightly acidic water (pH ≥ 6)

• Chlorine Generator Built-In – Automatically disinfects media during regeneration

• Regenerates with Salt/Brine – Simple maintenance similar to a water softener

• KDF Add-On Option – Optional upgrade to remove hydrogen sulphide (H₂S)

• Excellent for Clear Water Applications – Targets dissolved contaminants effectively

• Compact & Cost-Efficient – Multi-treatment system in a single unit

🔧 Site Requirements for CR100:

• Minimum pH: 6.0 (choose CR200 if pH ≥ 7.0)

• Minimum Hardness: 50 ppm (as CaCO₃)

• Minimum TDS: 80 ppm

• Max Combined Iron + Manganese: 15 ppm

• Contaminants must be in dissolved (not oxidised) form

💡 Crystal Right CR100 excels where many backwashing media fail – even performing effectively in slightly acidic conditions and low TDS water.

🔁 CR100 vs CR200 Media – How to Choose

❓ Frequently Asked Questions (FAQs)

Q: What does Crystal Right CR100 remove from water?

A: It removes iron, manganese, ammonia, and hardness, and raises low pH. It works via ion exchange and is ideal for acidic well water.

Q: Can this system treat hydrogen sulphide (rotten egg smell)?

A: Not with CR100 alone. However, adding a KDF media upgrade allows the system to remove low levels of H₂S (<0.5 ppm).

Q: How does the built-in chlorine generator work?

A: During regeneration, the Evolve valve produces chlorine to sanitise the media bed, preventing bacterial growth and unpleasant odours—without requiring external chemical dosing.

Q: How often does the system regenerate?

A: This depends on water usage and contaminant levels. The system is designed to regenerate automatically as needed, using standard salt/brine regeneration.

Q: What’s the advantage of Crystal Right vs. traditional backwashing media like Birm or Catalytic Carbon?

A: Crystal Right:

• Works at lower pH (≥6.0)

• Combines hardness, iron, manganese, ammonia treatment + pH correction

• Requires only brine for regeneration (no air or chemical injection)
