Fleck 13509 (FL13509) impeller for 3/4 & 1in Meters

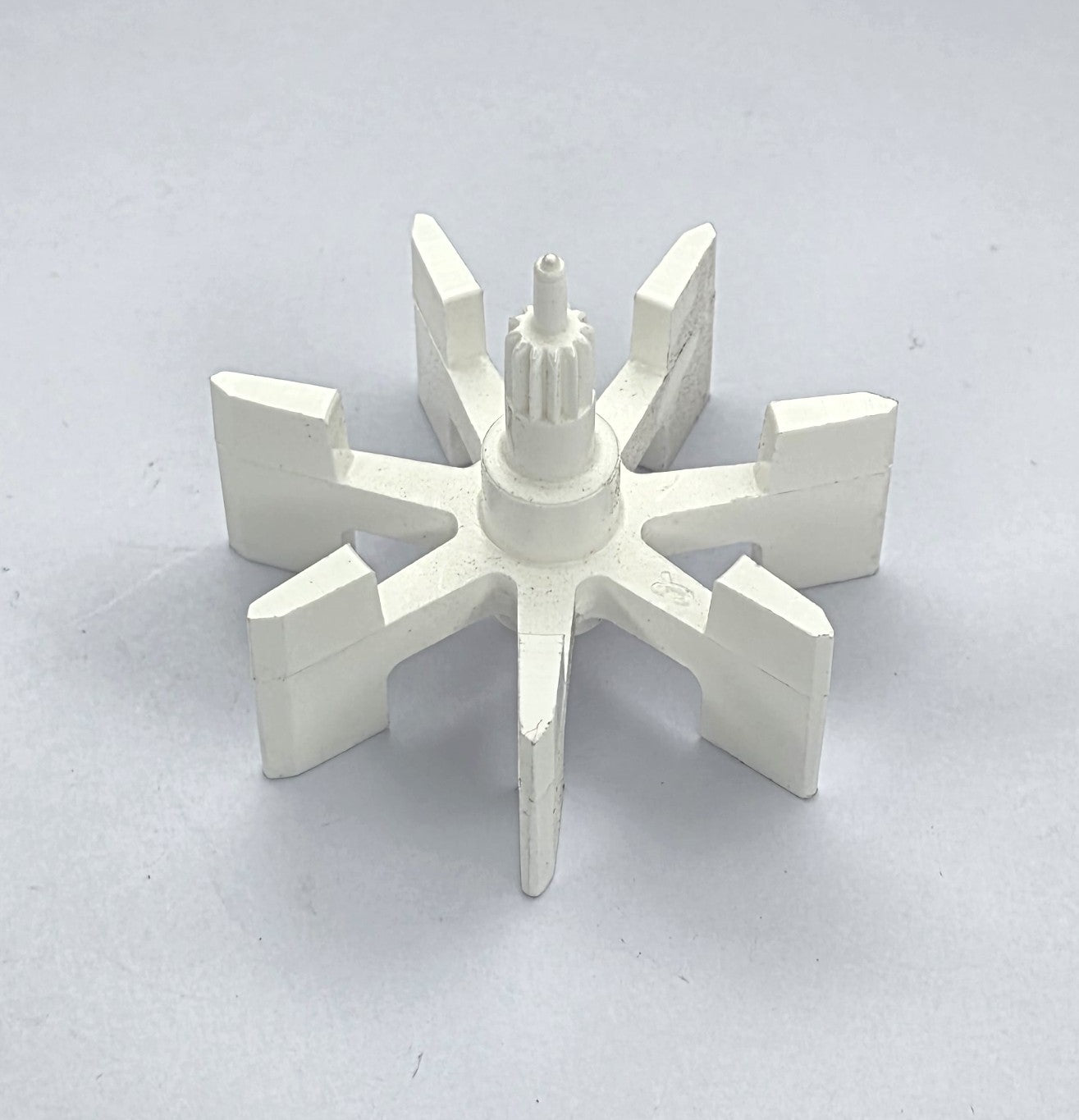

The FL13509 impeller is the small spinning turbine inside Fleck 3/4in and 1in water meters that measures every litre passing through the softener so the valve knows exactly when to trigger a regeneration. WrekinWater supplies this genuine-fit impeller to correct meters that are under-reading, over-reading, or have stopped registering flow altogether.

Technical specifications

Symptoms that mean you need this part

• The softener regenerates far more or far less often than your household water usage would suggest
• The digital display shows little or no water usage even though taps are clearly running
• A rattling or ticking noise from the meter body when water is flowing
• Softened water runs out unexpectedly between regenerations despite normal usage patterns

Why it fails / why it matters

The impeller spins on its spindle in direct proportion to water flow, and the valve's electronics count those rotations to work out exactly how many litres have passed through before triggering the next regeneration. Fine grit, iron sediment or scale building up on the impeller blades or spindle causes it to spin unevenly or seize slightly, so the meter under-reads or over-reads usage - throwing off the whole regeneration schedule even though every other part of the valve is working normally.

Why buy this from WrekinWater

WrekinWater has served more than 50,000 customers over 15 years and stocks Pentair Fleck, Autotrol, Clack, Kinetico and other major brands, so a correctly sized FL13509 impeller for either the 3/4in or 1in meter is always available. As a family run company based in Bettisfield, Shropshire rated Excellent on Trustpilot, we can help you check which meter size your valve uses before you order.

How to fit it

1. Turn off the water supply to the softener before starting any work on the meter.
2. Locate the meter body, usually mounted on the inlet side of the valve or bypass assembly.
3. Remove the meter cap or cover to expose the impeller and spindle.
4. Lift out the old impeller and inspect the housing for grit, scale or sediment build-up.
5. Fit the new FL13509 impeller onto the spindle in the same orientation as the original.
6. Refit the meter cap, restore the water supply and run a manual regeneration to confirm the meter is registering flow accurately.
