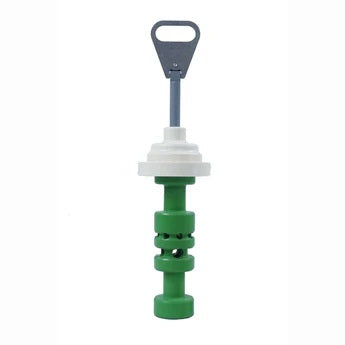

Fleck 24235 - 9000 Series Piston assembly lower DF (Down Flow)

Fleck 24235 - 9000 Series Piston assembly lower DF (Down Flow)

SKU:10444000168

Low stock

Regular price £78.00 inc. VAT
£65.00 ex. VAT
Sale price £78.00 inc. VAT
£65.00 ex. VAT
Shipping calculated at checkout.
Shipping is calculated at checkout
Please ensure you order the correct Water Softener/Filter/Valve parts and Media as returns are not available for these products, as per our Terms and conditions and refund/return policy.
If you would like delivery to Scottish Highlands or UK Offshore Areas.Please contact us for Accurate Shipping charges. Call Now
Order Before 2pm For Same Day Processing

Product Description

The Fleck 24235 lower piston assembly is the genuine replacement part for downflow-configured Fleck 9000 series water softener control valves, stocked by WrekinWater for anyone whose softener is leaking to drain, cycling erratically or showing a worn lower piston when the valve is opened up. It's a direct fit for the lower position on DF valve bodies.

Technical specifications

Part Number 24235
OEM Reference 10444000168
Brand Pentair Fleck
Compatible Valve Fleck 9000 series
Configuration Downflow (DF)
Position Lower piston
Material Noryl piston body with rubber seal stack

Symptoms that mean you need this part

  • Water leaks to drain during the service cycle rather than only during scheduled regeneration
  • The softener produces hard water intermittently even though the resin bed itself is in good condition
  • The old piston shows scoring, flat spots or worn seal grooves on inspection
  • You hear grinding or feel resistance as the valve tries to index through its regeneration positions

Why it fails / why it matters

The lower piston in a 9000 series downflow valve works alongside the upper piston to route water correctly through backwash, brine draw and rinse positions during regeneration. Because it sits deeper in the valve body and handles a different set of port transitions, it experiences its own wear pattern from mineral fines and constant friction, and once the seal grooves wear down it stops sealing cleanly - allowing water to cross between ports it shouldn't and causing leaks, hardness bypass or a valve that struggles to complete its cycle.

Why buy this from WrekinWater

WrekinWater has served more than 50,000 customers over 15 years from Bettisfield, Shropshire, and as UK Company No. 11000488 we stock genuine Pentair Fleck parts alongside Autotrol, Clack, Kinetico and other major brands, rated Excellent on Trustpilot. Buying the correctly specified lower piston for your downflow 9000 series valve means it will seat and seal exactly as the original did.

How to fit it

  1. Turn off the water supply and switch the control valve to bypass
  2. Remove the valve's lower retaining cap or clip to access the lower piston
  3. Carefully withdraw the worn lower piston assembly from the valve body
  4. Fit the new 24235 piston, checking the orientation matches the original before seating it fully
  5. Refit the retaining cap or clip securely
  6. Restore the water supply, take the valve off bypass, and run a manual regeneration to confirm smooth indexing with no leaks

Frequently asked questions

The 24234 is the upper piston and the 24235 is the lower piston in the same downflow 9000 series valve stack - they work as a pair but wear independently, so each is sold and fitted separately.

Yes, the upper and lower pistons can be accessed and replaced independently, so you only need to disturb the section you're actually replacing.

Most customers complete the swap in around 20-30 minutes once the valve is isolated on bypass, using standard hand tools.
