Product Description

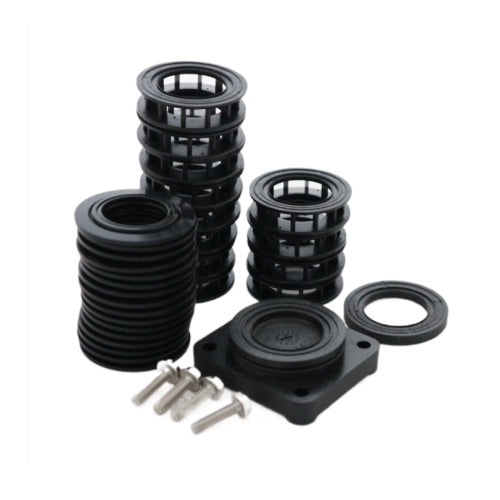

The Fleck 25642 is the complete seals and spacers kit for Fleck 9000 series control valves, covering both the upper and lower piston stacks in one kit, and WrekinWater supplies it to fully re-seal 9000 series softeners that are leaking to drain or letting hardness bypass through. It's the fastest way to service the whole valve stack in one job rather than ordering upper and lower kits separately.
Technical specifications
| Part Number | 25642 |
| OEM Reference | 10444000106 |
| Brand | Pentair Fleck |
| Compatible Valve | Fleck 9000 series |
| Kit Contents | Upper and lower seals, spacers and O-rings |
| Coverage | Full valve stack (upper and lower) |
| Water Type | Standard cold water |
Symptoms that mean you need this part
- Water is leaking from the drain line even when the softener is sitting in normal service mode
- Hard water is bypassing the resin bed despite the resin itself being in good condition
- You notice water hammer or banging in the pipework as the valve moves through regeneration
- Both the upper and lower piston seals show flattening, cracking or hardening when the valve is opened up
Why it fails / why it matters
On a 9000 series valve, the upper and lower piston stacks each rely on their own seal and spacer sets to keep water routed correctly between service, backwash, brine draw and rinse positions. Years of exposure to mineral fines, chlorinated mains water and constant piston movement cause the rubber seals in both stacks to compress, harden and eventually split at similar rates, so when one stack starts leaking it's common for the other to be close behind - which is why a combined upper-and-lower kit like the 25642 is often the more sensible fix.
Why buy this from WrekinWater
WrekinWater has served more than 50,000 customers over 15 years from Bettisfield, Shropshire, and as UK Company No. 11000488 we stock genuine Pentair Fleck parts alongside Autotrol, Clack, Kinetico and other major brands, rated Excellent on Trustpilot. Ordering the combined 25642 kit means you're getting the correctly matched seals for both stacks of your 9000 series valve in a single order.
How to fit it
- Turn off the water supply and switch the valve to bypass
- Remove the upper retaining cap and withdraw the upper piston, then remove the lower retaining cap and withdraw the lower piston
- Strip the old seals and spacers from both pistons, keeping the upper and lower sets separated and noting their order
- Fit the new seals and spacers from the 25642 kit to each piston in the same sequence, lubricating lightly with food-safe silicone grease
- Reinsert both pistons into the valve body and refit the upper and lower retaining caps
- Restore the water supply, take the valve off bypass, and run a manual regeneration to check for leaks and correct operation across the full cycle
