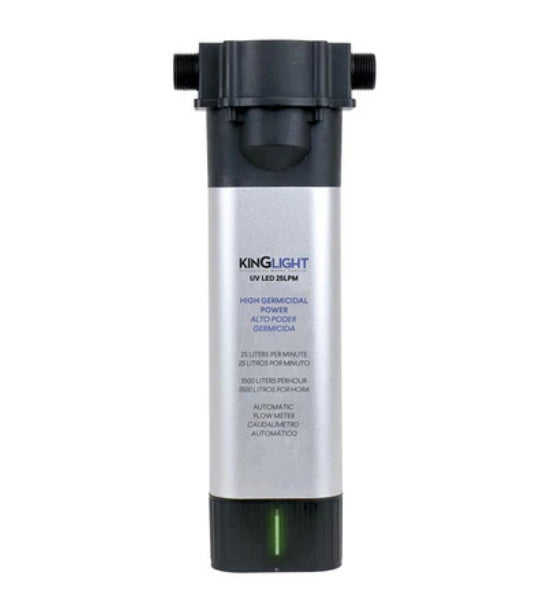

KINGLIGHT UV LED 10-25 LPM - 3/4in Male Ports
KINGLIGHT UV LED 10-25 LPM - 3/4in Male Ports
SKU:243620
Share
Product Description
Product Description
INTELLIGENCE AT THE SERVICE OF YOUR HOME
Over time, the quality of drinking water can be affected by contamination with harmful bacteria. KINGLIGHT UV devices are reliable, chemical-free instruments that provide an effective method of sterilising drinking water.
KEY BENEFITS over traditional UV lamps
-
MERCURY Free -
The UV LED system is more eco-friendly than conventional UV lamps because it does not use mercury. This is crucial, as mercury is a highly toxic heavy metal. Eliminating this element significantly reduces the risk of environmental contamination.
UV LED Technology : offers a more sustainable and efficient alternative to conventional UV, with benefits for both the environment and the user.
LOW CONSUMPTION: Higher energy efficiency. The low energy consumption of UV LED systems contributing to reducing the carbon footprint and long-term cost savings.
INSTANT START: Eliminating the warm-up time not only increases efficiency but also reduces unnecessary energy consumption.
STANDBY MODE: Thanks to its "standby mode," it consumes only 20%,maintaining continuous protection with minimal energy consumption.
MUCH LONGER LIFESPAN: UV LEDs have a much longer lifespan than conventional UV lamps, reducing the need for frequent replacements and, consequently, minimizing waste generation.
-
LED Status Indicator: Built-in LED display shows the system's operating status:
- Blue: Waiting
- Green: In operation
- Red: End of useful life
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 140 mm x 360 mm |
| Main Material | PP, Aluminium alloy |
| Electrical Supply | 100V-240V, 50/60Hz |
| Power | 23W |
| Output Voltage | 24Vdc 2A |
| Working Temperature | 2ºC – 65ºC |
| Pressure | 0.8 MPa |
| Connections | 3/4″ |
| Flow of Osmosed Water | 25 L/min |
| Flow of Filtered Water (10µm) | 12-18 L/min |
| Minimum Flow for Activation | 3 L/min |
| Sterilization Rate | ≥99.9% |
| Service Life | 3,000 hours |
| Waterproof Grade | IPX7 |
